Fantech Trade SCUD Ceiling Fan - 3 Blade 1220mm 48", Light
Fantech Trade · SCUDC48WHLED3
Scud DC three-blade fans

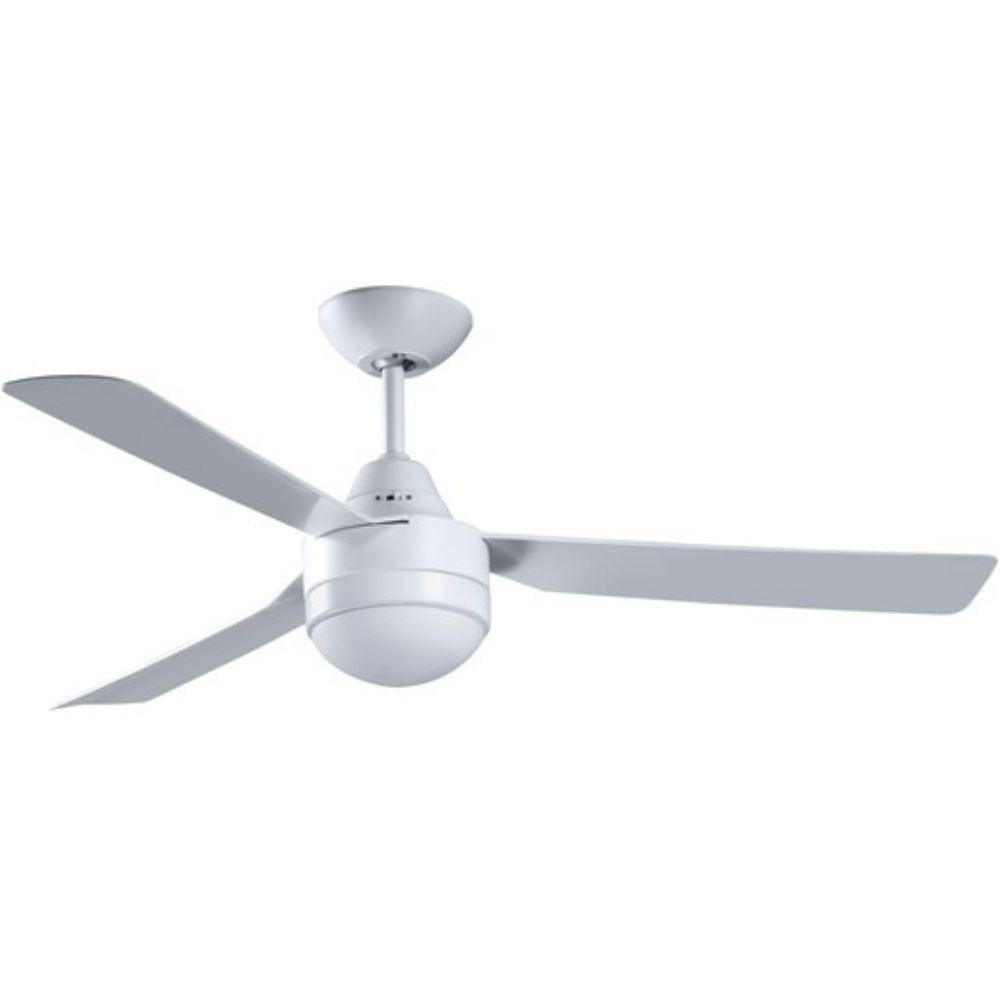

A 1220 mm DC ceiling fan with three ABS blades and a choice of the supplied remote or wall control. This listing includes the integrated LED light.
Before you order
Electrical installation and any fixed wiring must be completed by a qualified electrician. Follow the manufacturer’s installation instructions and provide access for maintenance. Use either the supplied remote or the supplied wall control; they cannot operate together. Provide all-pole disconnection in the fixed wiring. Maximum ceiling slope is 15°. The mounting support must carry 30 kg; blades must be at least 2.1 m above the floor and 300 mm from walls. Optional extensions must be the compatible DC rods, not the AC ROD900/1500 range. Third-party controllers are not compatible and their use voids the manufacturer warranty. The integrated LED light is included; no separate lamp is required.
Built for the application
DC motor
The fan uses a 40 W DC motor supplied from 220–240 V AC.
Three ABS blades
The selected models use three ABS blades.
Controls included
A 12-speed remote and three-speed wall control are supplied.
Integrated LED light
Select the light colour using the fitting’s colour-temperature control.
Specifications and supplied components
- Motor
- DC
- Supply
- 220–240 V AC, 50 Hz
- Fan motor power
- 40 W
- Fan diameter
- 1220 mm
- Blade count
- 3
- Body and blades
- ABS
- Maximum airflow
- 11,520 m³/h
- Controls included
- 12-speed remote; three-speed wall control (use one only)
- Remote functions
- 12 speeds, natural-wind mode, reverse and 1/4/8-hour timer
- Remote batteries
- 2 × AAA, supplied
- Included mounting parts
- Mounting bracket, fan assembly with downrod and canopy, 3 blades, mounting and blade screws, canopy buttons and balancing kit
- Maximum ceiling slope
- 15°
- Warranty
- 2 years in-home + 1 year parts
- Warranty conditions
- Subject to manufacturer terms: proof of purchase, correct qualified installation and compatible controls. Obtain service authorisation before incurring in-home costs.
Choose your exact model
SCUDC48WHLED3
- Ozlighting SKU
- FT-SCUDC48WHLED3
- Manufacturer code
- SCUDC48WHLED3
- No. of Fan Blades
- 3
- Colour
- White
- LED Light
- Yes
- Maximum airflow (m³/h)
- 11,520 m³/h
- Motor power
- 40 W
- Supply voltage
- 220-240 V AC
- Supply frequency
- 50 Hz
- Finish
- White
- Light
- Integrated LED
- Ceiling-to-blade distance
- 330 mm
- Fan weight
- 3.3 kg
- LED power
- 16 W
- LED light colour
- 3000 / 4000 / 5000 K
- LED dimming
- Via supplied compatible remote
Dimensions labelled A, B or other letters refer to the manufacturer’s model-specific drawing. Airflow and sound ratings refer to the stated test conditions; installed performance depends on the ventilation system.
Installation and product information
Check the exact model’s dimensions and installation instructions before ordering or cutting an opening.
