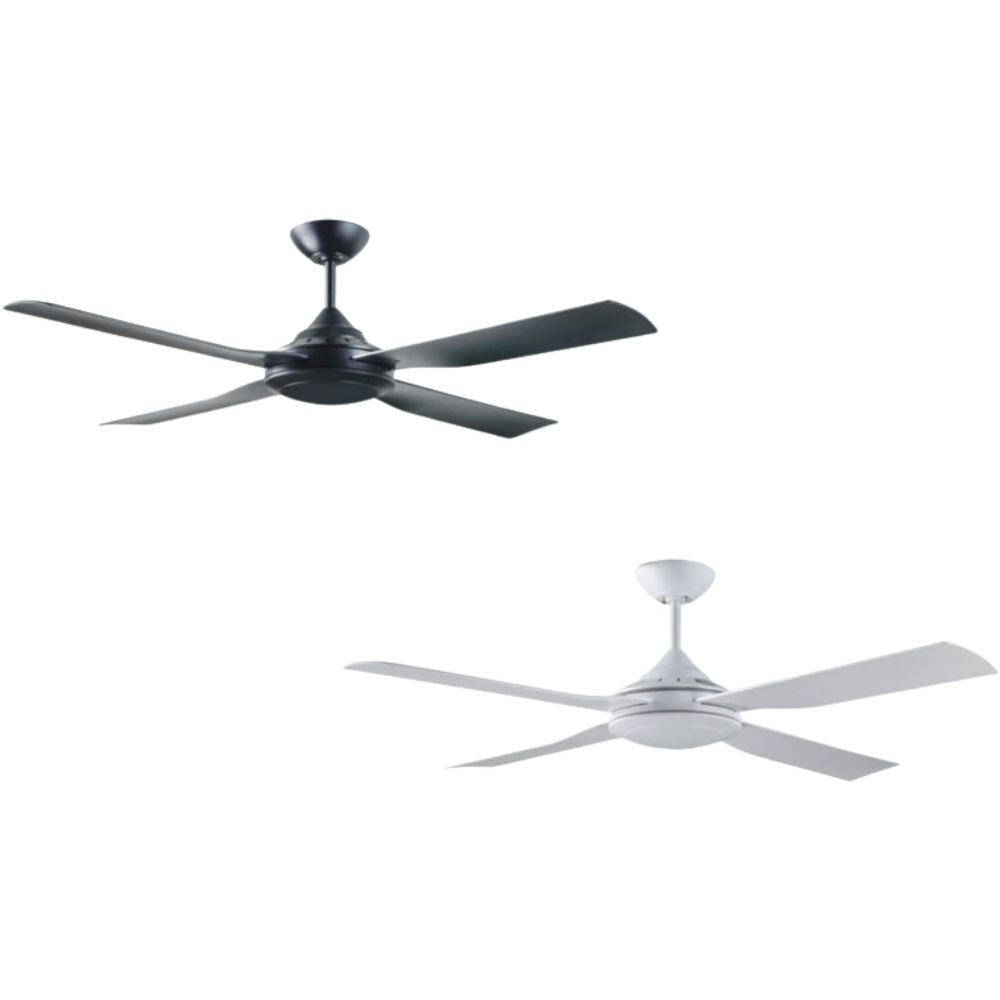

Fantech Trade QUINTON-52 AC Ceiling Fan - 4 Blade 1320mm 52"
Fantech Trade · QTN52WH
Quinton AC ceiling fans
An AC ceiling fan with 4 ABS blades, summer/winter reverse and a supplied three-speed wall control. These models do not include a light.
Before you order
Electrical installation and any fixed wiring must be completed by a qualified electrician. Follow the manufacturer’s installation instructions and provide access for maintenance. The three-speed wall control is supplied. SFREMOTE is optional and separate. Maximum ceiling slope is 18°; this is a mounting angle, not a light beam angle. Confirm blade clearance and suitable structural support before installation.
Built for the application
ABS blades
The fan uses 4 ABS blades.
Wall control supplied
A three-speed wall control with light switch is included.
Summer and winter modes
Reverse rotation supports seasonal airflow.
Optional remote
The compatible SFREMOTE kit is available separately.
Specifications and supplied components
- Motor
- AC
- Supply
- 220–240 V AC, 50 Hz
- Blade material
- ABS
- Blades
- 4
- Control supplied
- Three-speed wall control with light switch
- Optional control
- SFREMOTE, sold separately
- Maximum ceiling slope
- 18°
- Warranty
- 2 years in-home + 4 years parts
- Warranty conditions
- Subject to manufacturer terms: proof of purchase, correct qualified installation and compatible controls. Obtain service authorisation before incurring in-home costs.
Choose your exact model

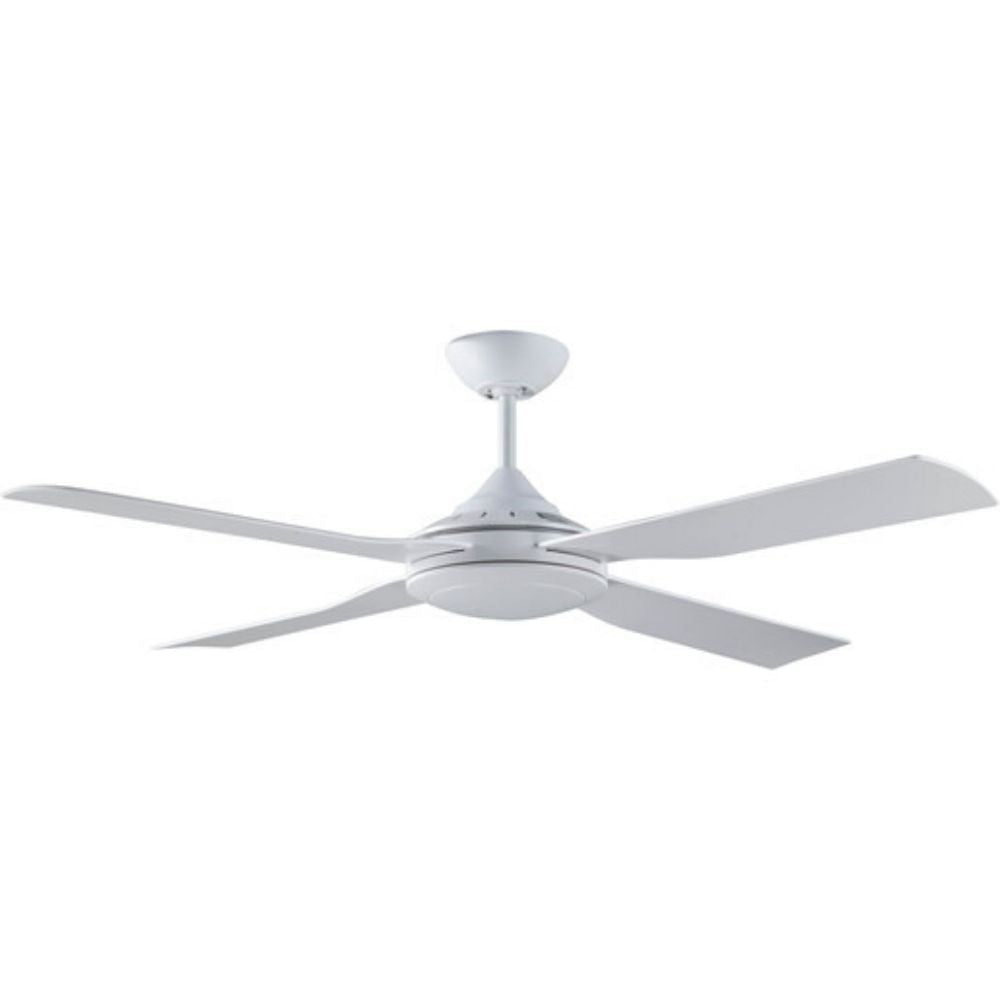

QTN52WH
- Ozlighting SKU
- FT-QTN52WH
- Manufacturer code
- QTN52WH
- Dimension A (supplier diagram)
- 340mm/13.4”
- Dimension B (supplier diagram)
- 1320mm/52”
- Fan Size
- 1320mm/52”
- Colour
- White
- LED Light
- No
- Maximum airflow (m³/h)
- 13,120 m³/h
- Motor power
- 75 W
- Supply voltage
- 220-240 V AC
- Supply frequency
- 50 Hz
- Ceiling-to-blade distance
- 340 mm
- Maximum motor power
- 75 W
- Light
- No light

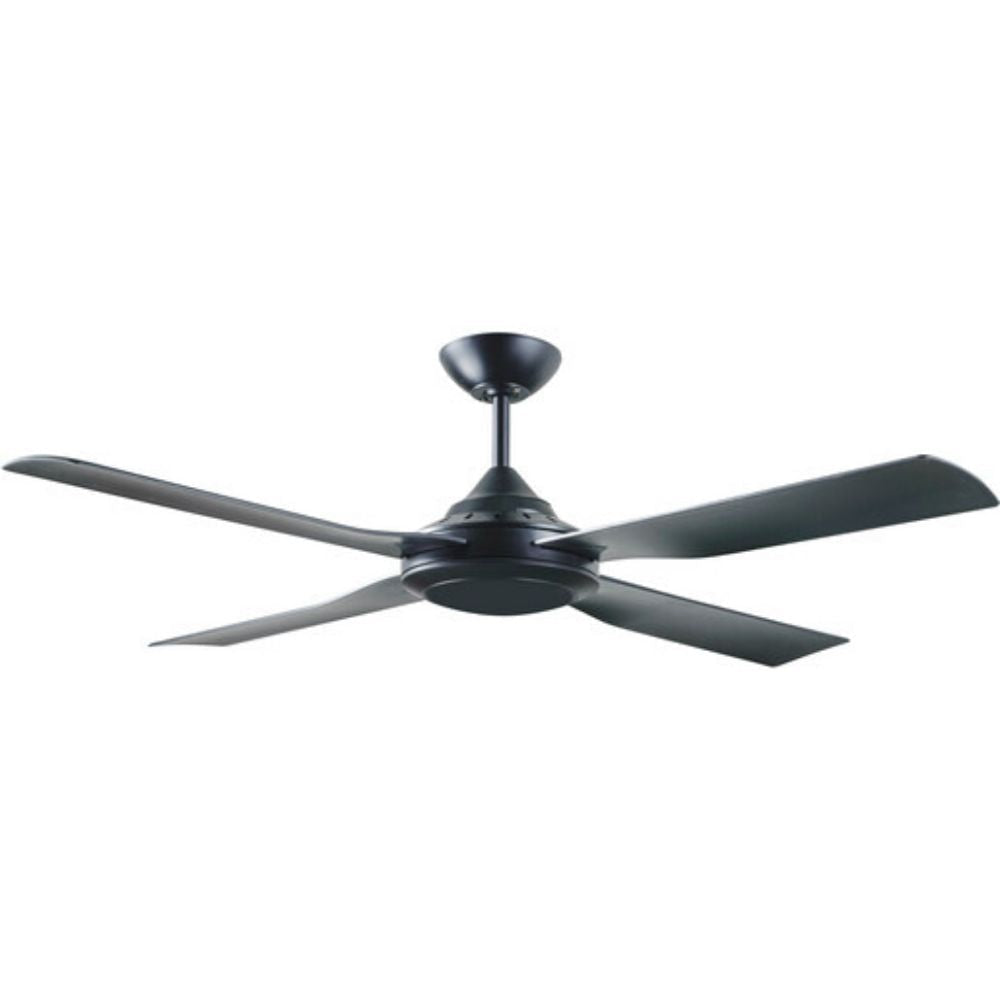

QTN52BK
- Ozlighting SKU
- FT-QTN52BK
- Manufacturer code
- QTN52BK
- Dimension A (supplier diagram)
- 340mm/13.4”
- Dimension B (supplier diagram)
- 1320mm/52”
- Fan Size
- 1320mm/52”
- Colour
- Black
- LED Light
- No
- Maximum airflow (m³/h)
- 13,120 m³/h
- Motor power
- 75 W
- Supply voltage
- 220-240 V AC
- Supply frequency
- 50 Hz
- Ceiling-to-blade distance
- 340 mm
- Maximum motor power
- 75 W
- Light
- No light

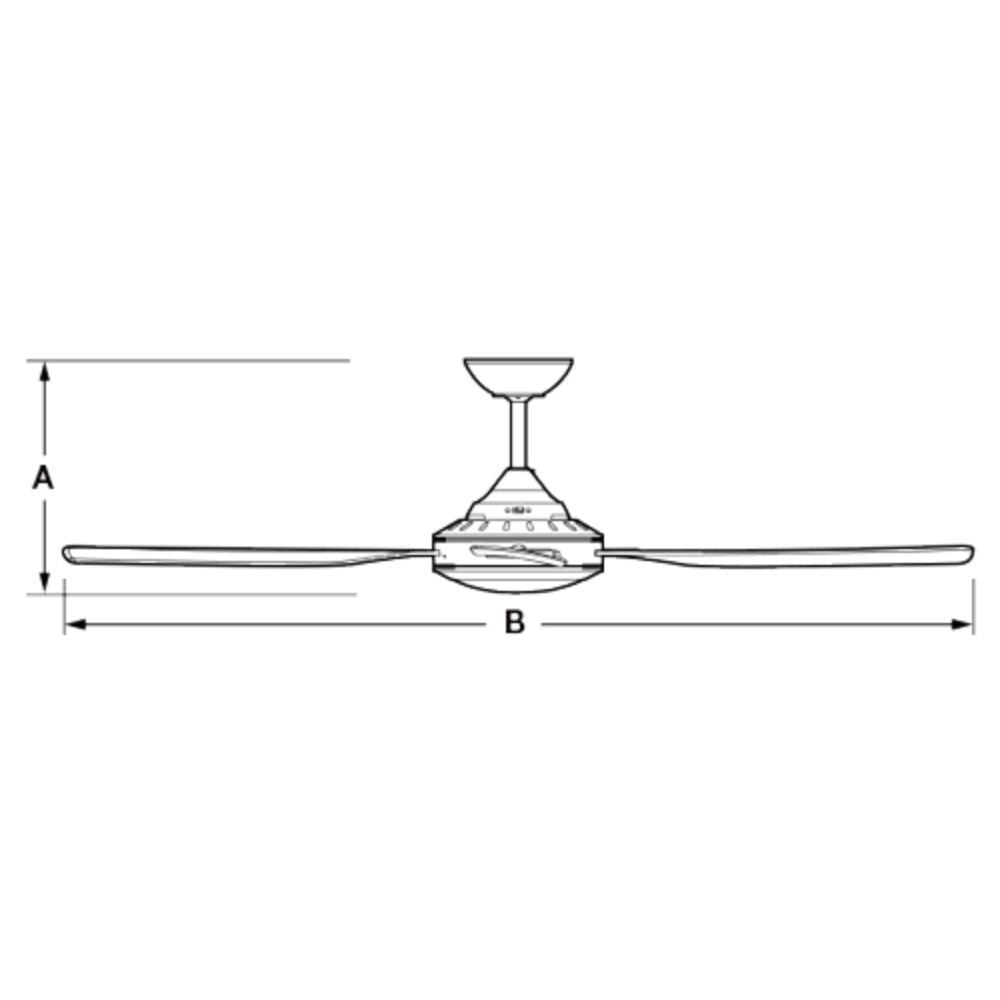

Dimensions labelled A, B or other letters refer to the manufacturer’s model-specific drawing. Airflow and sound ratings refer to the stated test conditions; installed performance depends on the ventilation system.
Installation and product information
Check the exact model’s dimensions and installation instructions before ordering or cutting an opening.
