Fantech Trade IDJG Grille - Ceiling
Fantech Trade · IDJG150
Adjustable jet-diffuser grilles

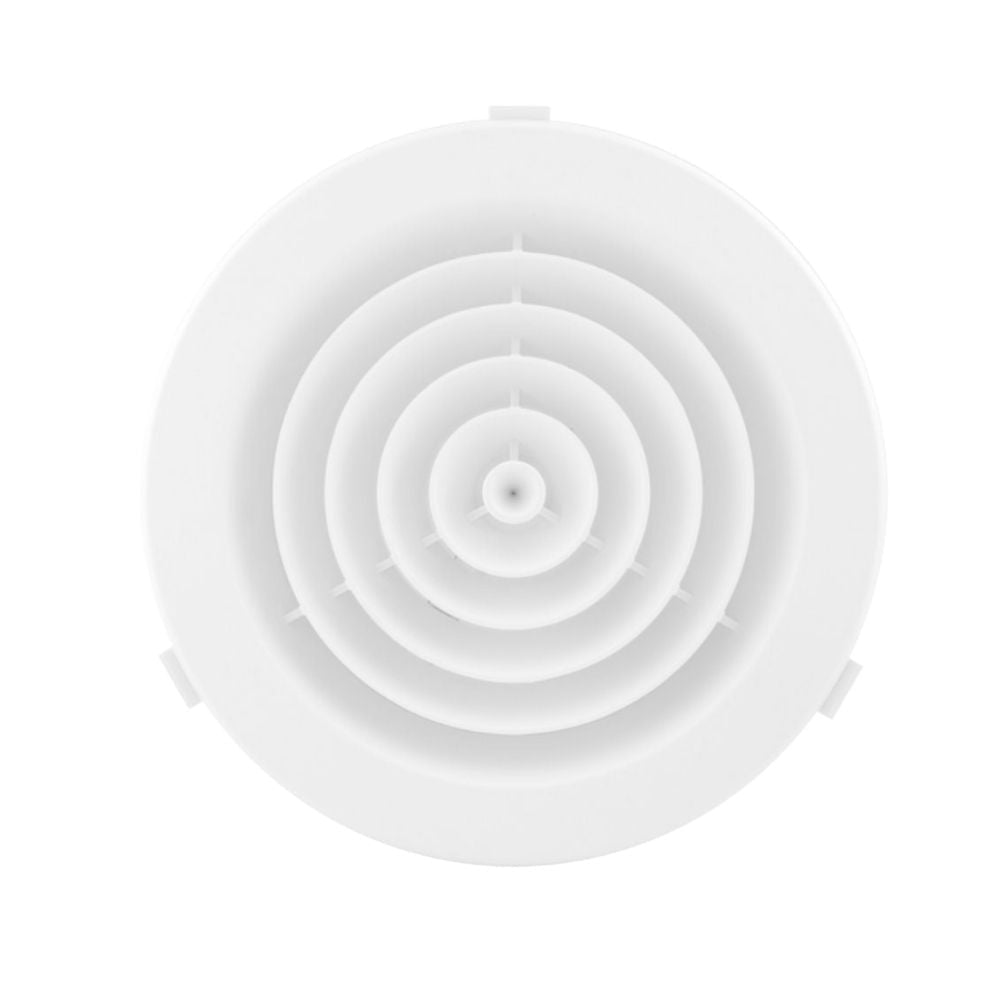

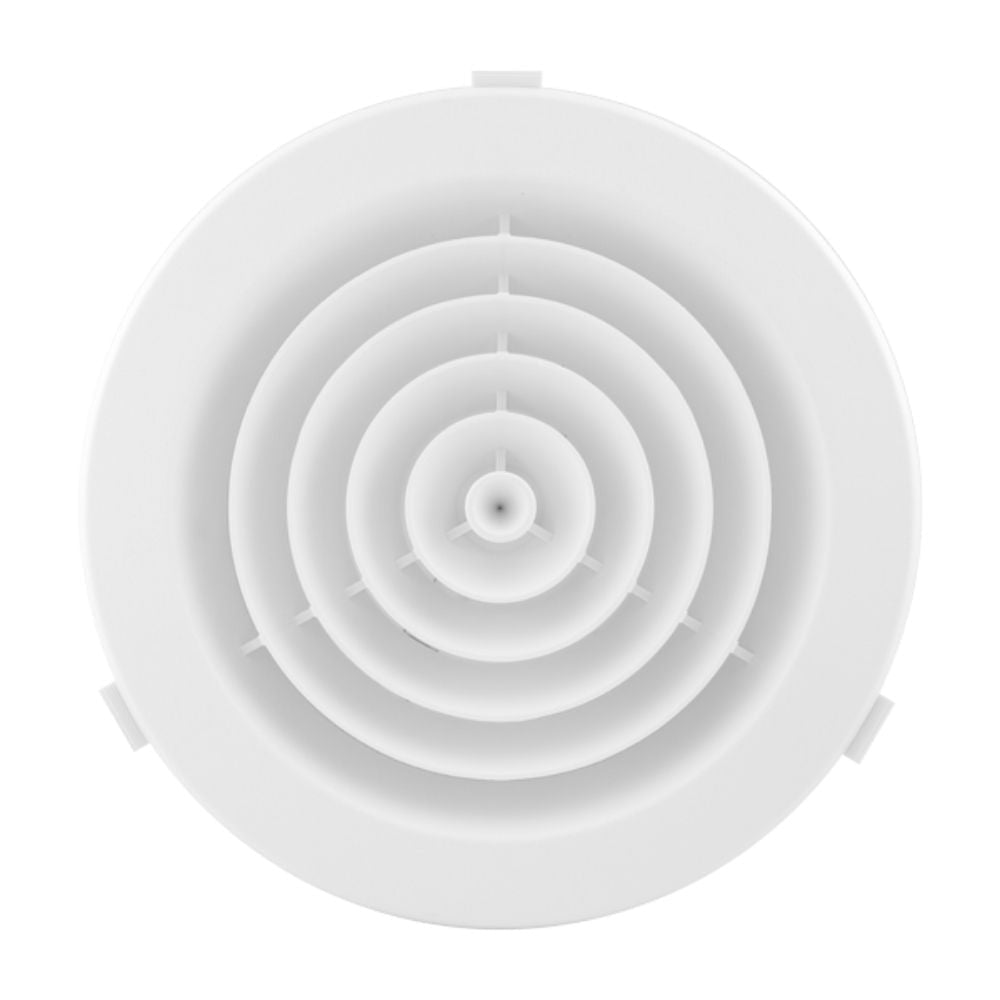

White ABS jet-diffuser grilles with a centre-button adjustment for airflow direction.
Before you order
Grille only: fan and duct are separate. Confirm the selected cut-out and duct size before installation.
Built for the application
Centre-button adjustment
Adjust the centre button to direct airflow.
White ABS
The grille has a white ABS finish.
Duct-size options

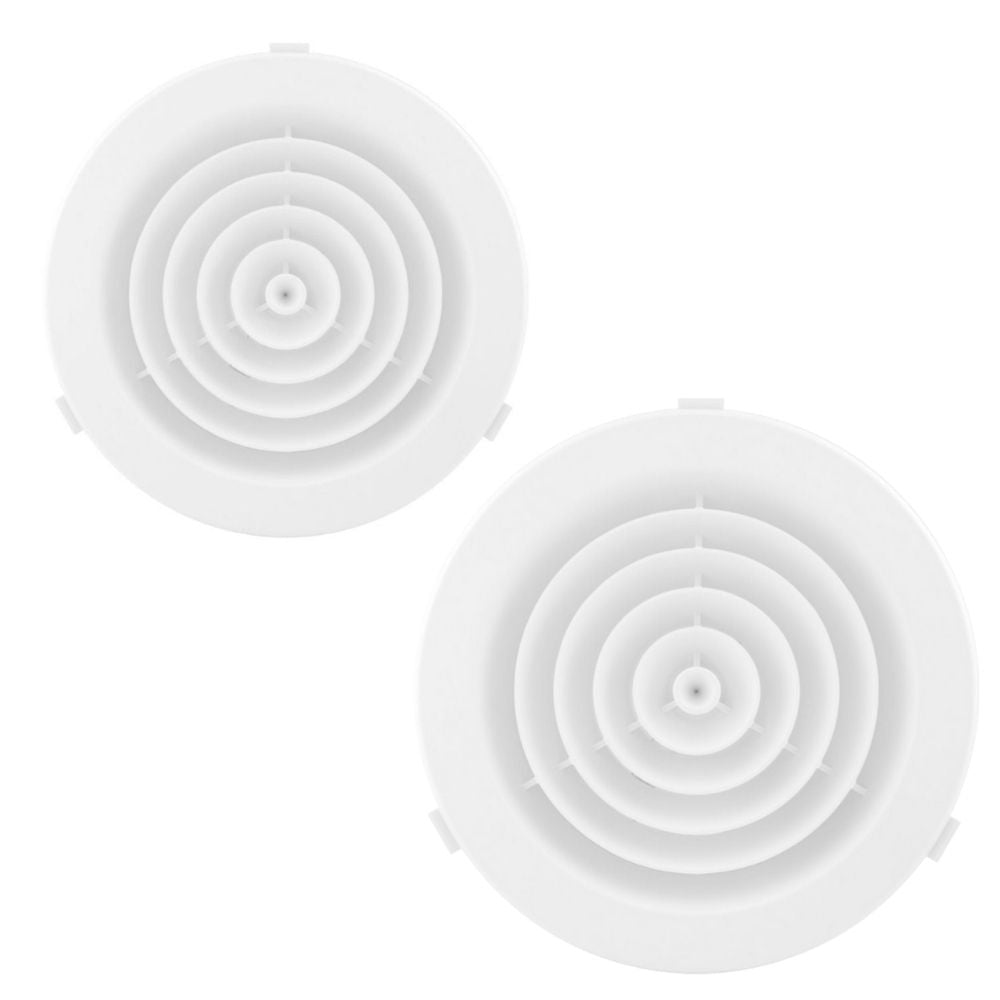

150 and 200 mm models are available.
Circular face
A round face suits an internal duct opening.
Specifications and supplied components
- Material
- ABS
- Finish
- White
Choose your exact model
IDJG150
- Ozlighting SKU
- FT-IDJG150
- Manufacturer code
- IDJG150
- Duct Diameter
- 150 mm

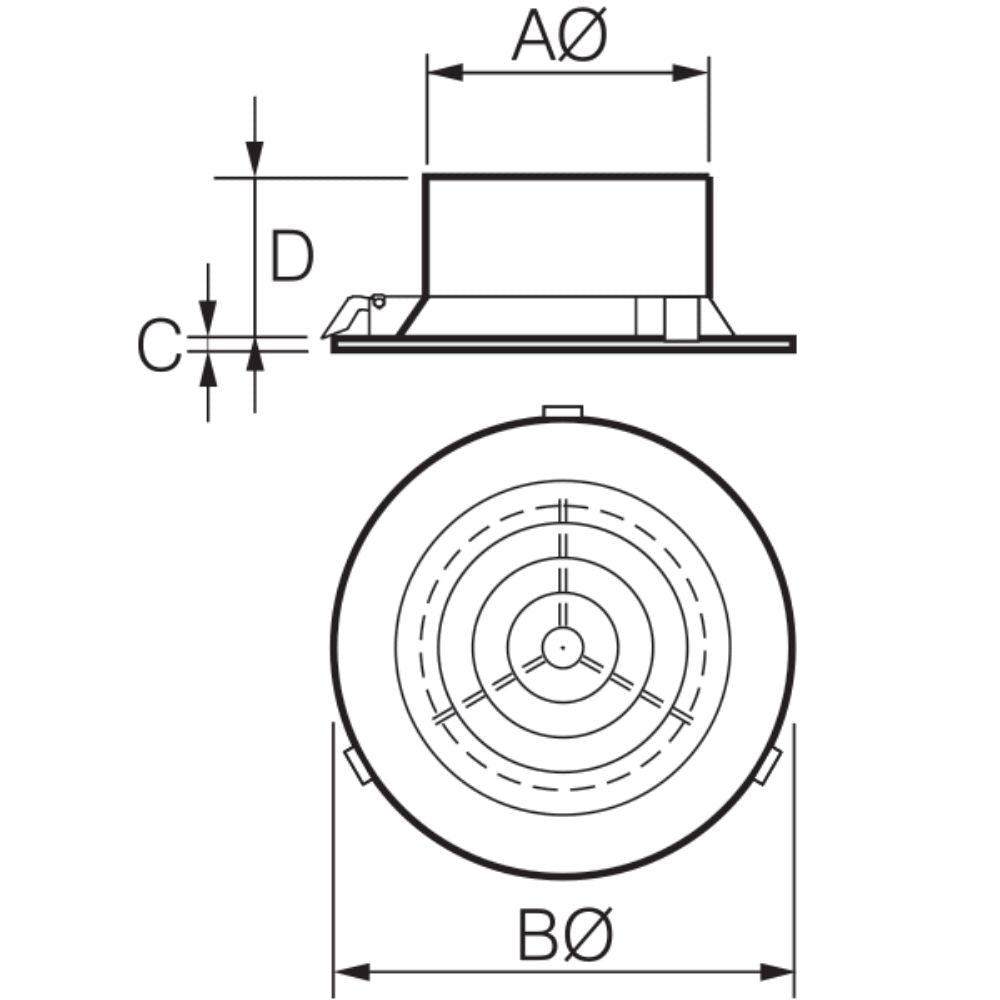

- Dimension AØ (supplier diagram)
- 143 mm
- Dimension BØ (supplier diagram)
- 240 mm
- Dimension C (supplier diagram)
- 5 mm
- Dimension D (supplier diagram)
- 98 mm
- Hole Cutout Ø
- 210 mm
- Nominal duct size
- 150 mm
IDJG200
- Ozlighting SKU
- FT-IDJG200
- Manufacturer code
- IDJG200
- Duct Diameter
- 200 mm
- Dimension AØ (supplier diagram)
- 193 mm
- Dimension BØ (supplier diagram)
- 290 mm
- Dimension C (supplier diagram)
- 5 mm
- Dimension D (supplier diagram)
- 92 mm
- Hole Cutout Ø
- 266 mm
- Nominal duct size
- 200 mm
Dimensions labelled A, B or other letters refer to the manufacturer’s model-specific drawing. Airflow and sound ratings refer to the stated test conditions; installed performance depends on the ventilation system.
Installation and product information
Check the exact model’s dimensions and installation instructions before ordering or cutting an opening.
