FANTECH TRADE Duct - TD SILENT, In-Line, Mounted Fan IP44
Fantech Trade · TD-1300/250SIL
TD Silent inline fans
Acoustically treated inline fans with removable motor bodies and two selectable motor speeds.
Before you order
Electrical installation and any fixed wiring must be completed by a qualified electrician. Follow the manufacturer’s installation instructions and provide access for maintenance. Ductwork and inlet/outlet grilles are required separately. The models offered here do not include a run-on timer. Speed selection and any compatible controls must follow the exact model instructions.
Built for the application
Acoustic treatment
Sound-absorbing construction reduces radiated fan noise.
Two speeds
The motor is factory set to high speed, with separate low-speed ratings.

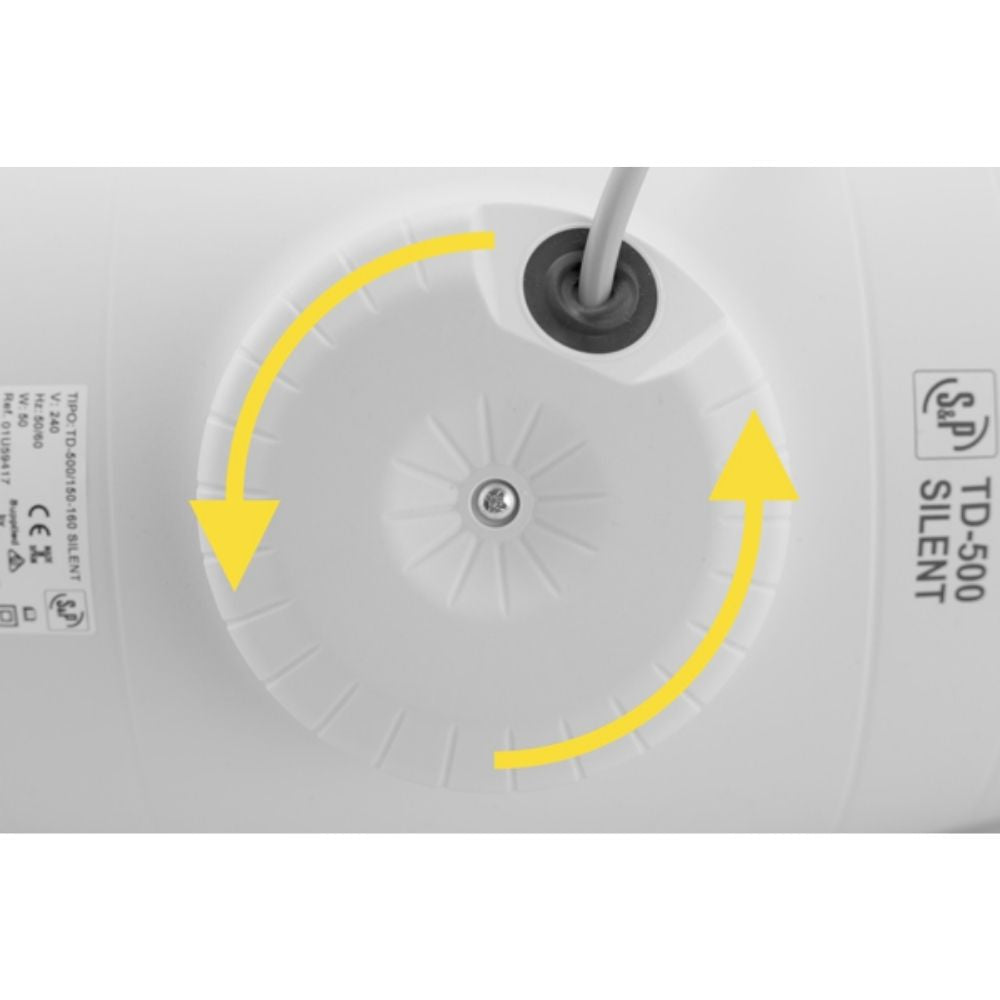

Maintenance access
The motor body removes from the duct connection assembly.
Mounting support
Integral mounting feet and a plug-and-lead connection are supplied.
Specifications and supplied components
- Supply
- 230 V AC, 50 Hz
- IP rating
- IP44
- Timer
- Not included on these models
Choose your exact model
TD-1300/250SIL
- Ozlighting SKU
- FT-TD-1300/250SIL
- Manufacturer code
- TD-1300/250SIL
- Dimension A (supplier diagram)
- 300 mm
- Dimension B (supplier diagram)
- 280 mm
- Dimension C (supplier diagram)
- 331 mm
- Dimension D (supplier diagram)
- 387 mm
- Dimension E (supplier diagram)
- 200 mm
- Dimension F (supplier diagram)
- 171 mm
- Dimension G (supplier diagram)
- 680 mm
- Dimension HØ (supplier diagram)
- 248 mm
- Dimension I (supplier diagram)
- 140 mm
- Airflow (m³/h)
- 1270 m³/h
- Airflow (L/s)
- 352 L/s
- Fan speed
- 2570 rpm
- Sound pressure at 3 m
- 47 dB(A)
- Motor power
- 197 W
- Supply voltage
- 230 V AC
- Nominal duct size
- 250 mm
TD-2000/315SIL
- Ozlighting SKU
- FT-TD-2000/315SIL
- Manufacturer code
- TD-2000/315SIL
- Dimension A (supplier diagram)
- 370 mm
- Dimension B (supplier diagram)
- 335 mm
- Dimension C (supplier diagram)
- 373 mm
- Dimension D (supplier diagram)
- 432 mm
- Dimension E (supplier diagram)
- 260 mm
- Dimension F (supplier diagram)
- 192 mm
- Dimension G (supplier diagram)
- 825 mm
- Dimension HØ (supplier diagram)
- 312 mm
- Dimension I (supplier diagram)
- 152 mm
- Airflow (m³/h)
- 1760 m³/h
- Airflow (L/s)
- 488 L/s
- Fan speed
- 2680 rpm
- Sound pressure at 3 m
- 50 dB(A)
- Motor power
- 297 W
- Supply voltage
- 230 V AC
- Nominal duct size
- 315 mm

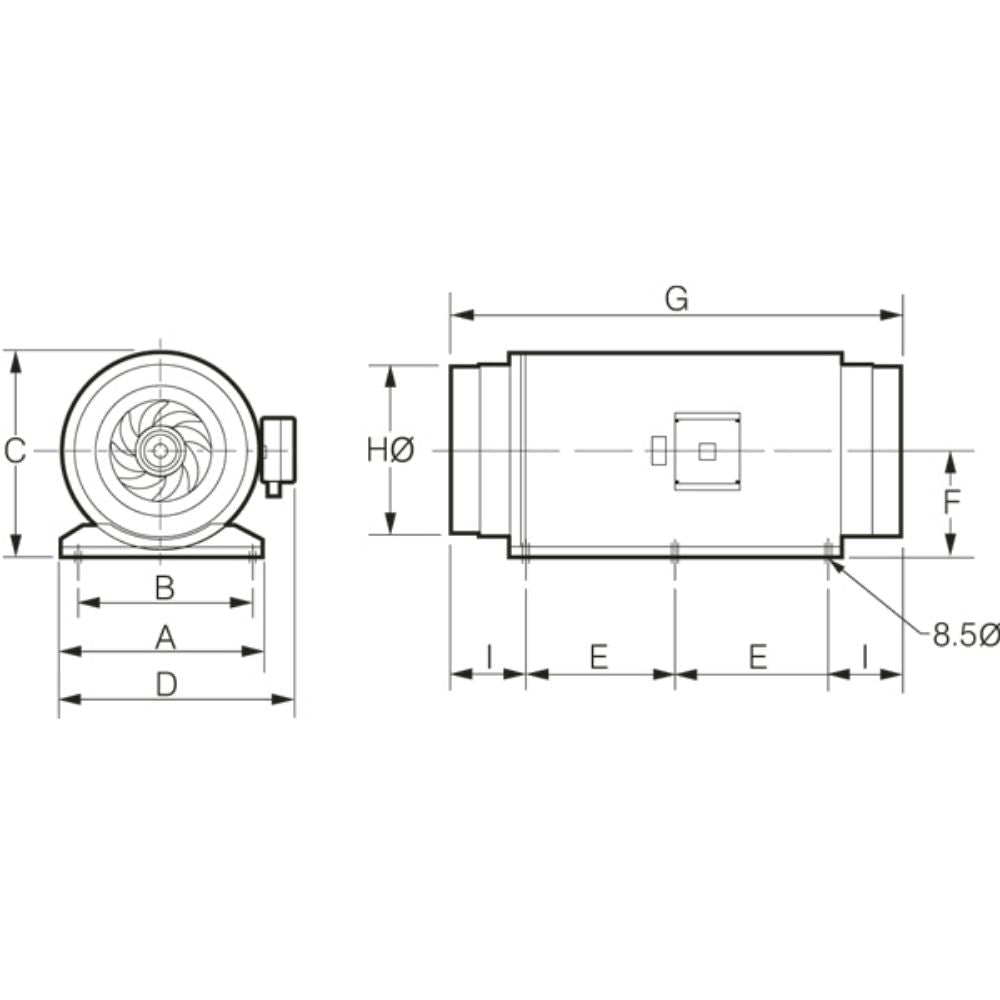

Dimensions labelled A, B or other letters refer to the manufacturer’s model-specific drawing. Airflow and sound ratings refer to the stated test conditions; installed performance depends on the ventilation system.
Installation and product information
Check the exact model’s dimensions and installation instructions before ordering or cutting an opening.
