EK-15575: Selectable power and tri-colour CCT.

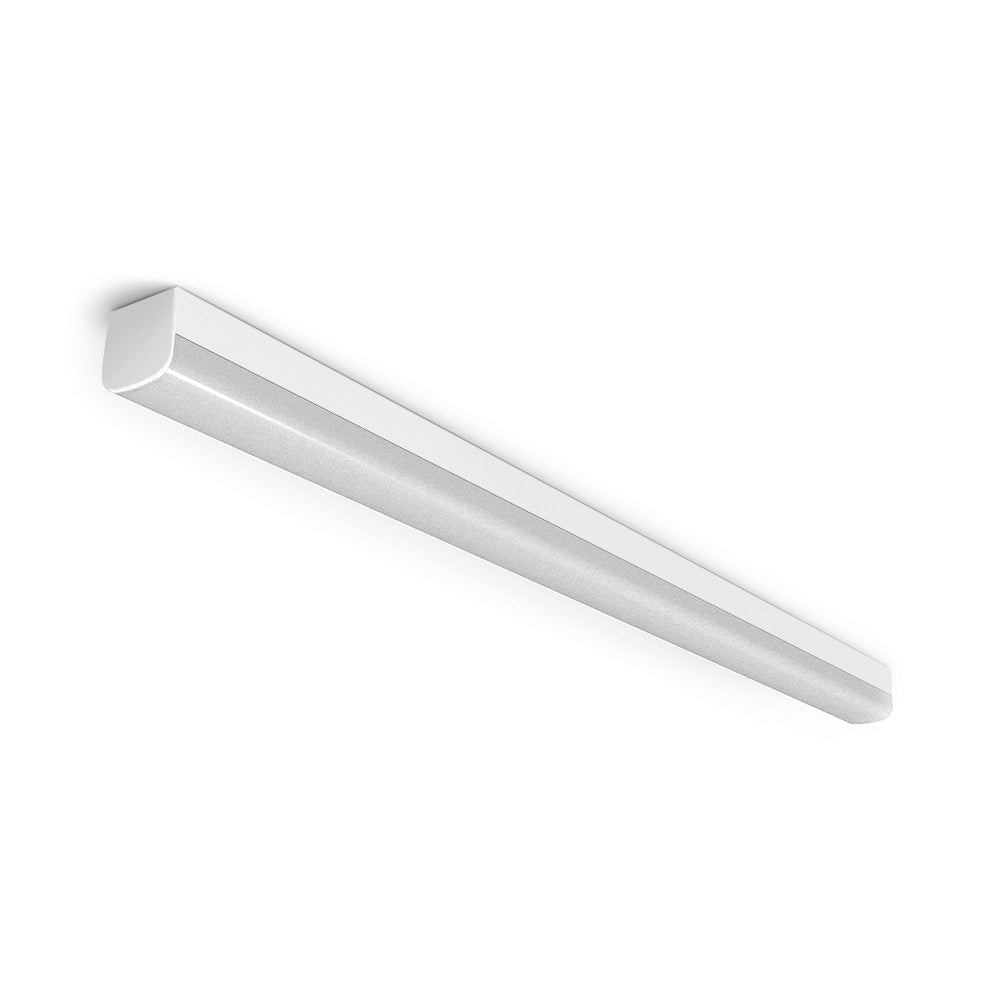

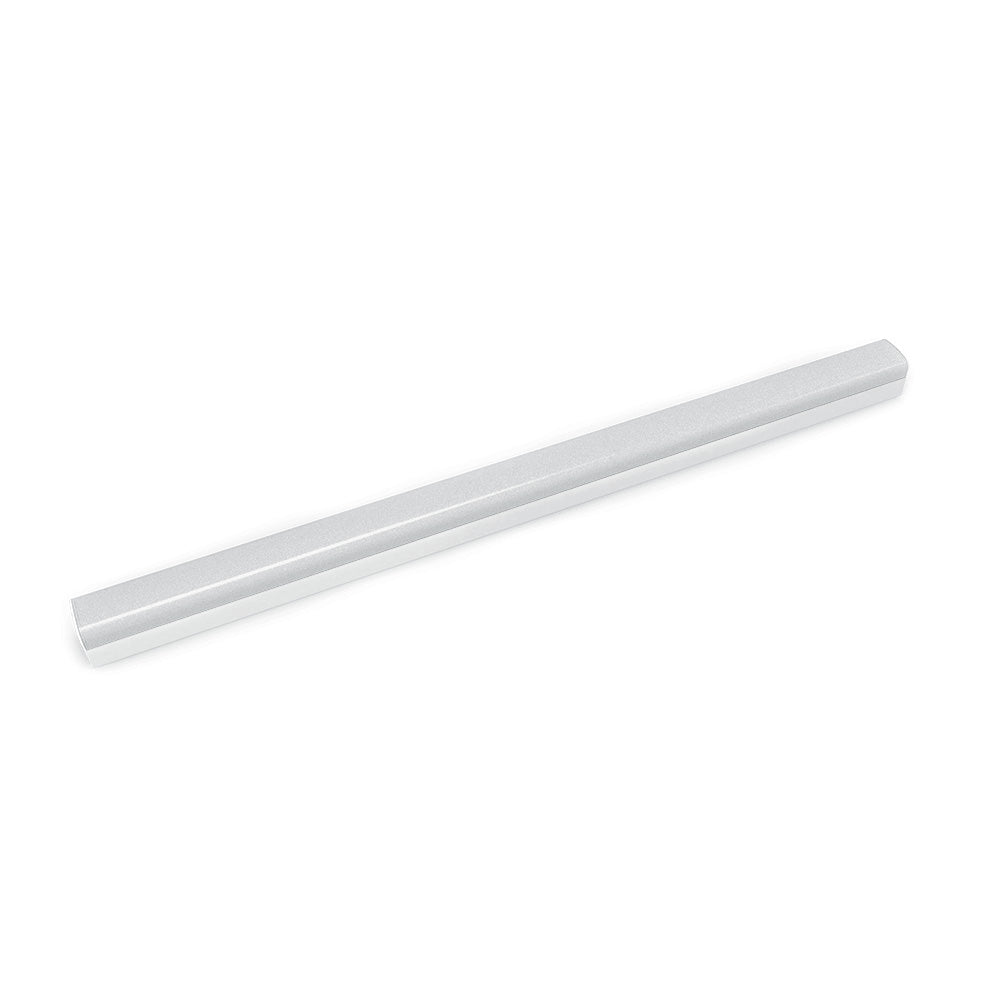

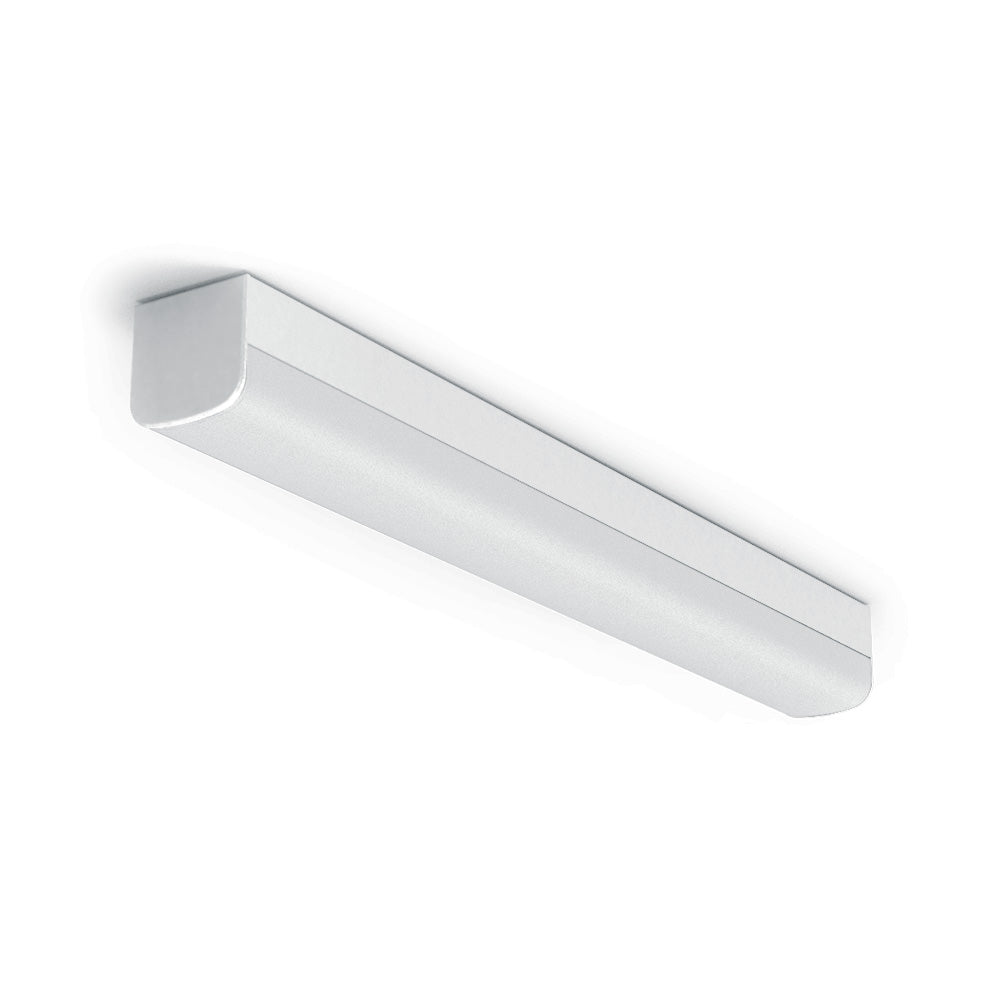

Ektor UMBRA-CORE-DIFF LED Batten Light - 20W/40W, 600mm, 1200mm, 2FT, 4FT, Tri-Colour, Diffused
UMBRA CORE DIFF
UMBRA CORE DIFF — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
IP Rating
IP20
IK Rating
IK06
Input voltage
230 V AC, 50 Hz / 230Vac
Maximum Wattage
40 W
Key features
EK-15575: Mounting: Surface.
EK-15575: Ingress protection: IP20.
EK-15575: Electrical class: Class I.
EK-15577: Selectable tri-colour LED colour temperature; exact settings are listed below.
EK-15577: Selectable output power; use the exact wattage settings shown for this model.
Technical specifications
EK-15575 · 600mm
Mechanical & electrical
- IP rating
- IP20
- Input voltage
- 230 V AC, 50 Hz
- Ambient temperature
- 0–40 °C
- Mounting
- Surface
- Connection
- Re-wireable terminal block
- Electrical class
- Class I
- Body and gear tray
- Powder coated steel
- Diffuser
- PMMA
- Endcaps
- Polycarbonate
- CRI
- 80
- SDCM
- <5
- Power settings
- 12 / 20 W
- Colour temperatures
- 4000 / 5000 / 6500 K
- LED lifetime
- >72,000 hours, L70B50
Light output
- 12 W, 4000 / 5000 / 6500 K
- 1450 / 1525 / 1425 lm
- 20 W, 4000 / 5000 / 6500 K
- 2200 / 2375 / 2150 lm
Features for this option
- Selectable power and tri-colour CCT.
- Mounting: Surface.
- Ingress protection: IP20.
- Electrical class: Class I.
EK-15577 · 1200mm
EV-UMBRA-CORE-DIFF-1200
Efficiencies
- Total System Efficiency
- 110 lm/W
Mechanical
- IP Rating
- IP20
- IK Rating
- IK06
- Fitting Colour
- White
- Body Material
- Powder coated steel
- Diffuser Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inline
- Maximum Wattage
- 40 W
- Input voltage
- 230Vac
- Input Current
- 0.2 A
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- TRI-CCT
- Macadam Steps (SDCM)
- 5-step MacAdam Ellipse
LED Lifetime
- LED Lifetime
- >78000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L80B10: >78000 hrs: >78000 hrs
- TM-21 Test Hours
- 13000 hrs
Colour temperature
- 24 Watts · 4000 K
- 3125 lm
- 24 Watts · 5000 K
- 3275 lm
- 24 Watts · 6500 K
- 3025 lm
- 40 Watts · 4000 K
- 4650 lm
- 40 Watts · 5000 K
- 5000 lm
- 40 Watts · 6500 K
- 4500 lm
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- No
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (3 pin)
- Driver Mode
- Constant Current
Compliance
- Product Design Life
- 6 years
- Daily Use
- 12 hrs
- Standards
- AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15
Features for this option
- Selectable tri-colour LED colour temperature; exact settings are listed below.
- Selectable output power; use the exact wattage settings shown for this model.
- Installation: Surface mount.
- Driver: Fixed output.
Dimensions
EK-15575
- Length
- 623 mm
- Width
- 70 mm
- Height
- 65 mm
EK-15577
- Product Height
- 70 mm
- Product Length
- 1223 mm
- Product Width
- 65 mm
Inclusions & required separately
- EK-15577: LED driver included.
Warranty
EK-15577
- Warranty
- 5 Year Warranty, First 2 Years Onsite
- Commercial Use Warranty
- 5Y return to base on General lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 15000 hrs
- Coverage limit
- Stated period or 15000 hrs, whichever occurs first
