Selectable tri-colour LED colour temperature; exact settings are listed below.

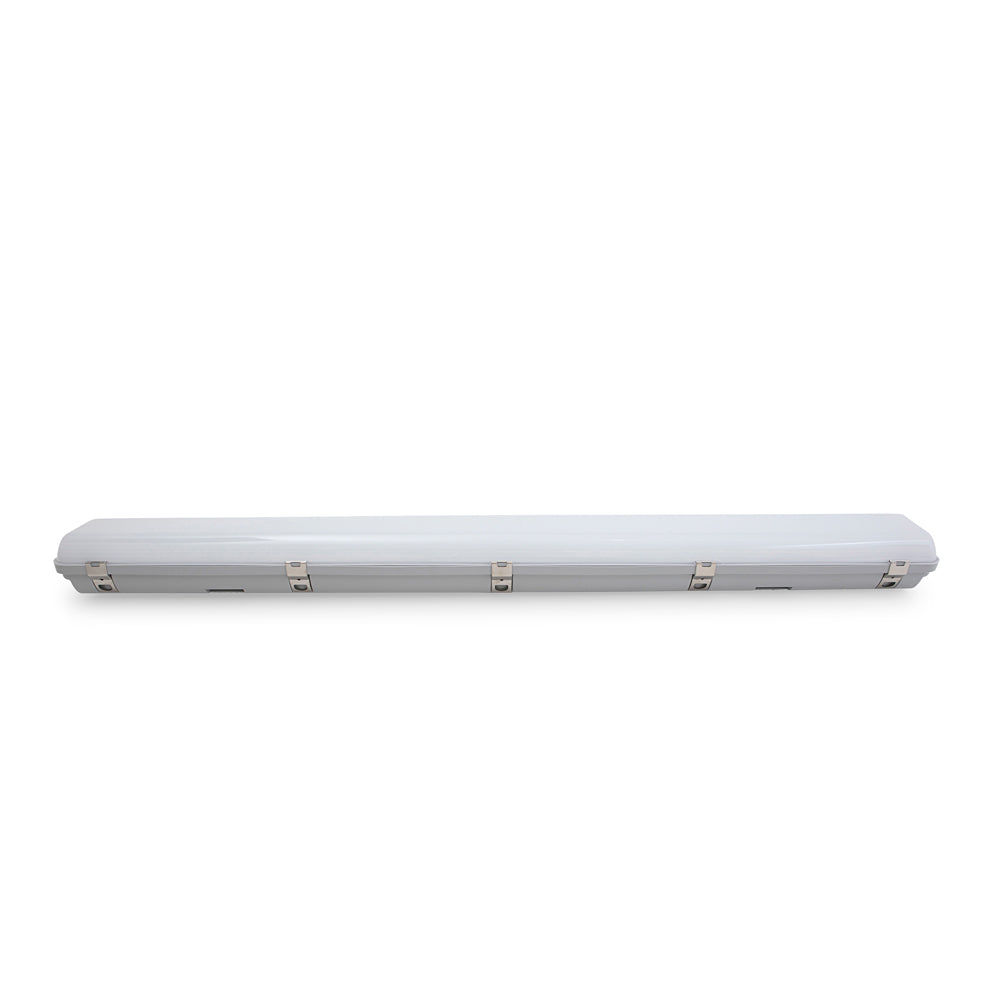

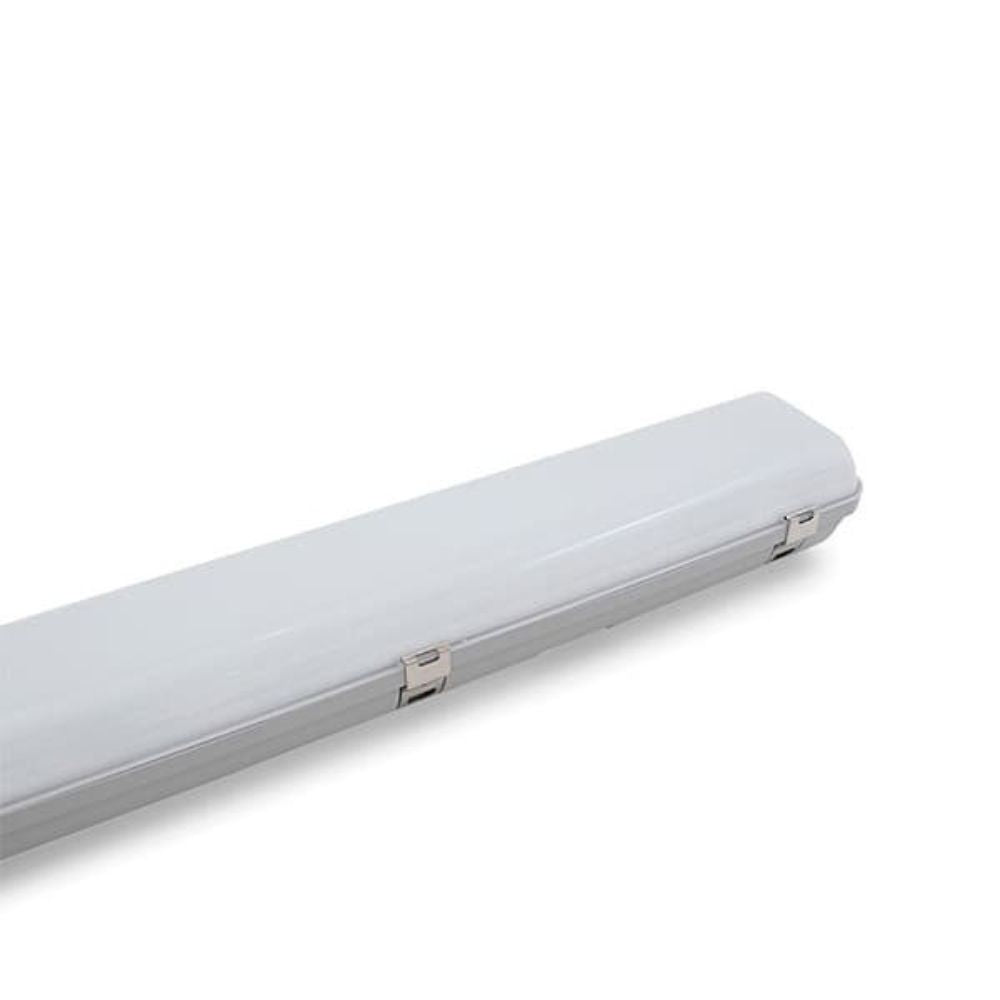

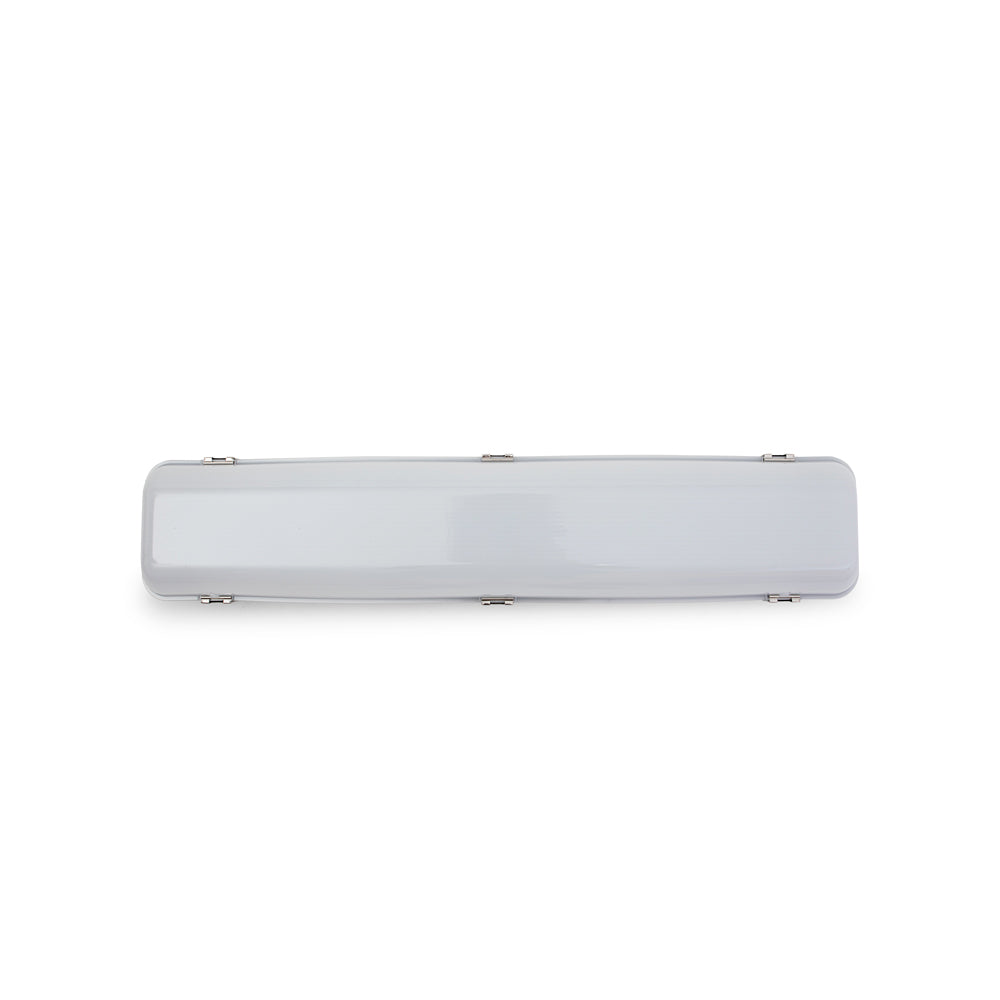

Ektor UMBRA-ADV-WP/S LED Batten Light - 22W/36W, 600mm, 1200mm, 2FT, 4FT, Tri-Colour, Weatherproof
UMBRA ADV WP/S
UMBRA ADV WP/S — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
IP Rating
IP65
IK Rating
IK08
Input voltage
230Vac
Maximum Wattage
22 W / 36 W
Key features
IP65 / IK08 construction.
Selectable output power; use the exact wattage settings shown for this model.
Microwave occupancy sensing.
Corridor mode provides the stated sensor control during standalone operation.
8-year product design life at the maximum stated ambient temperature.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP65
- IK Rating
- IK08
- Fitting Colour
- Grey
- Body Material
- Polycarbonate
- Diffuser Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- -20 to 40 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inline
- Power Factor
- 0.9
- Input voltage
- 230Vac
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- TRI-CCT
- Macadam Steps (SDCM)
- 4-step MacAdam Ellipse
- Lamp/LED voltage
- 36 V
LED Lifetime
- LED Lifetime
- >60000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L70B10: >60000 hrs: >60000 hrs
- TM-21 Test Hours
- 10000 hrs
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- No
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (4 pin)
- Driver Mode
- Constant Current
- PSTLM
- 0.09
- SVM
- 0.012
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range
- 10 m
- Time Delay
- 5s-14mins
- Switched Output
- No
- Corridor Function
- Yes
- Lux Adjustment
- Yes
- Dusk Mode
- Yes
- Adjustable Hold Time
- Yes
- Adjustable Standby Level
- Yes
- Adjustable Standby Period
- Yes
- Adjustable Detection Area / Sensitivity
- Yes
Energy Savings Scheme
- Ipart Approval
- Yes
- REES Approval
- Yes
- VEU Approval
- Yes
Compliance
- Daily Use
- 16 hrs
- Standards
- AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 4268
Additional verified features
- Product design life
- 8 years at maximum ambient temperature

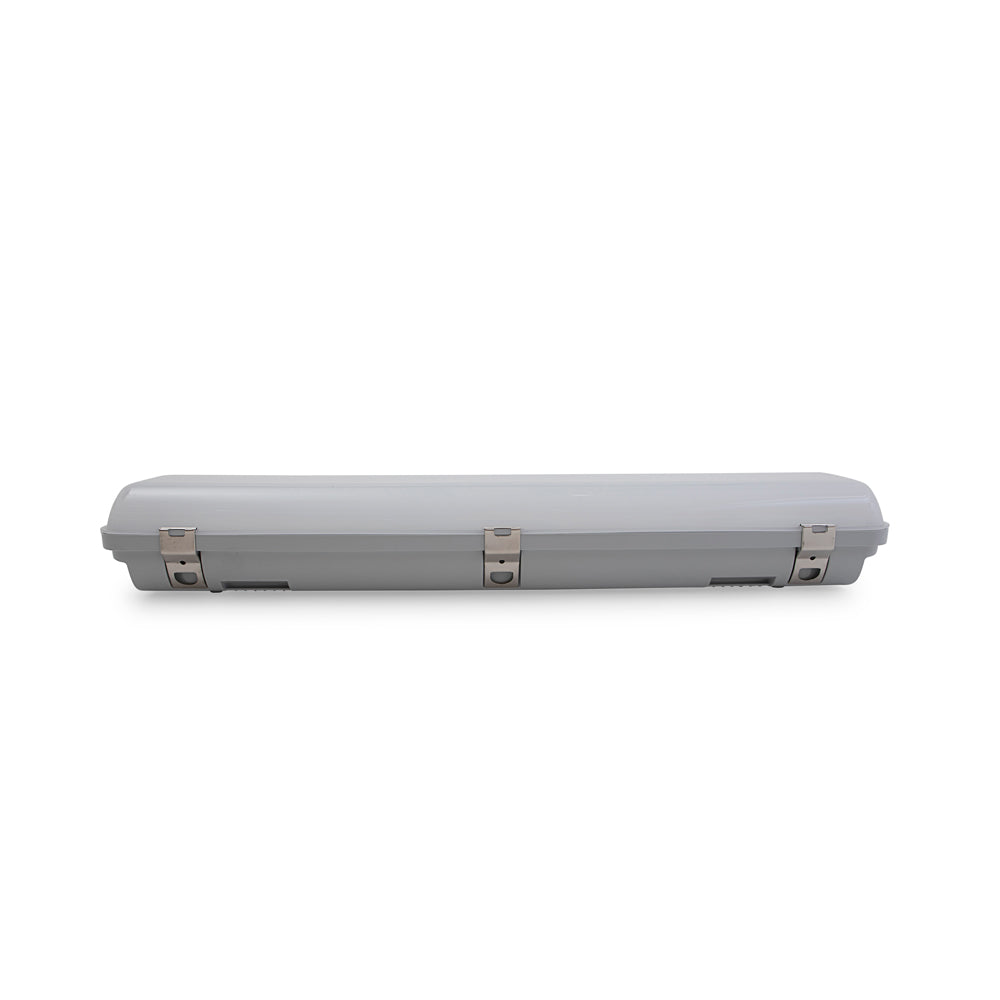

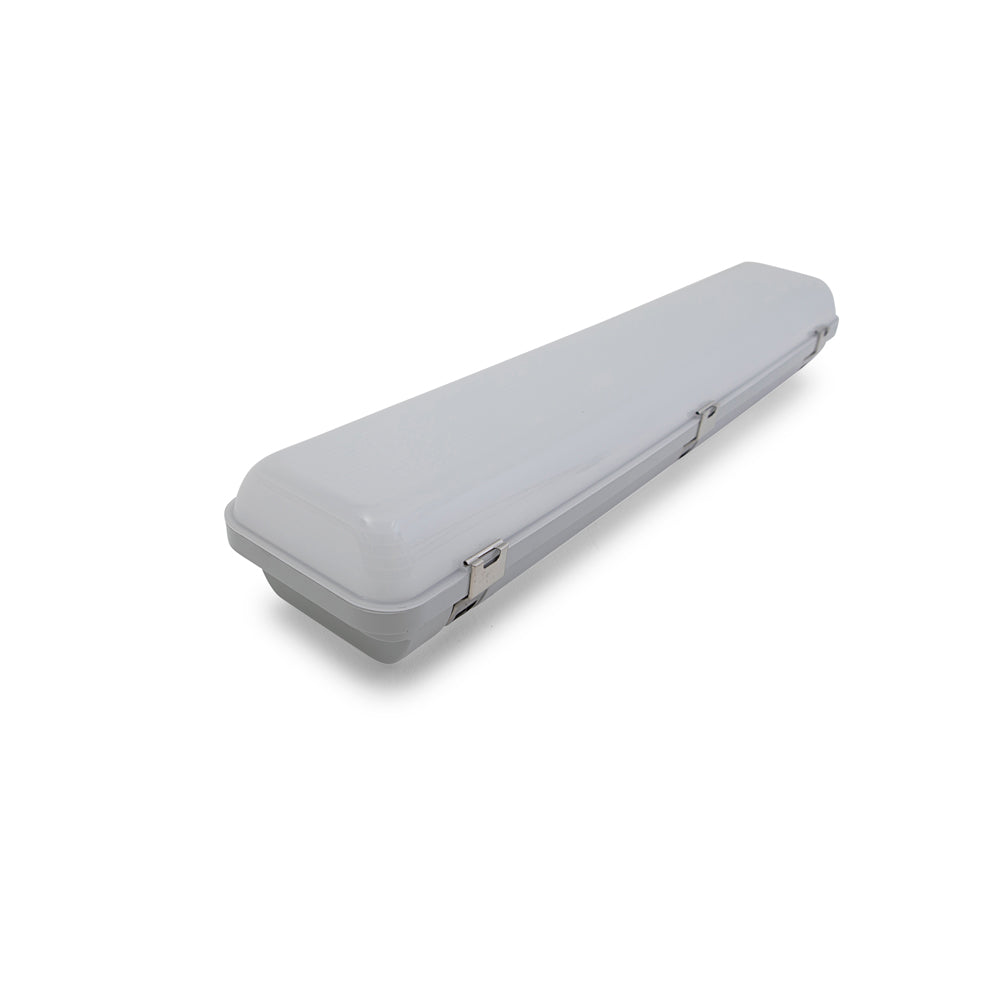

EK-12030 · 600mm
EV-UMBRA-ADV-IP65-600-S-TRI
Efficiencies
- Total System Efficiency
- 98 lm/W
Electrical
- Maximum Wattage
- 22 W
- Input Current
- 0.1 A
Lamp
- Lamp/LED Current
- 450 mA
Colour temperature
- 12 Watts · 4000 K
- >1100 lm / >84 CRI
- 12 Watts · 5000 K
- >1150 lm / >86 CRI
- 12 Watts · 6500 K
- >1100 lm / >84 CRI
- 22 Watts · 4000 K
- >2050 lm / >84 CRI
- 22 Watts · 5000 K
- >2150 lm / >86 CRI
- 22 Watts · 6500 K
- >2000 lm / >84 CRI
EK-12032 · 1200mm
EV-UMBRA-ADV-IP65-1200-S-TRI
Efficiencies
- Total System Efficiency
- 118 lm/W
Electrical
- Maximum Wattage
- 36 W
- Input Current
- 0.2 A
- Standby Power
- 1 W
Lamp
- Lamp/LED Current
- 890 mA
Colour temperature
- 20 Watts · 4000 K
- >2150 lm / >85 CRI
- 20 Watts · 5000 K
- >2200 lm / >85 CRI
- 20 Watts · 6500 K
- >2100 lm / >83 CRI
- 36 Watts · 4000 K
- >4100 lm / >85 CRI
- 36 Watts · 5000 K
- >4250 lm / >85 CRI
- 36 Watts · 6500 K
- >4000 lm / >83 CRI
Dimensions
EK-12030
- Product Height
- 93 mm
- Product Length
- 620 mm
- Product Width
- 130 mm
EK-12032
- Product Height
- 93 mm
- Product Length
- 1230 mm
- Product Width
- 130 mm
Inclusions & required separately
- EK-12030: LED driver included.
- EK-12032: LED driver included.
Warranty
EK-12030
- Warranty
- 5 Year Warranty, RTB
- Commercial Use Warranty
- 5Y return to base on General lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 25000 hrs
- Coverage limit
- Stated period or 25000 hrs, whichever occurs first
EK-12032
- Warranty
- 5 Year Warranty, RTB
- Commercial Use Warranty
- 5Y return to base on General lighting components; First 2Y includes an exclusive onsite warranty
- Warranty Operating Hours
- 25000 hrs
- Coverage limit
- Stated period or 25000 hrs, whichever occurs first
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
