Selectable tri-colour LED colour temperature; exact settings are listed below.

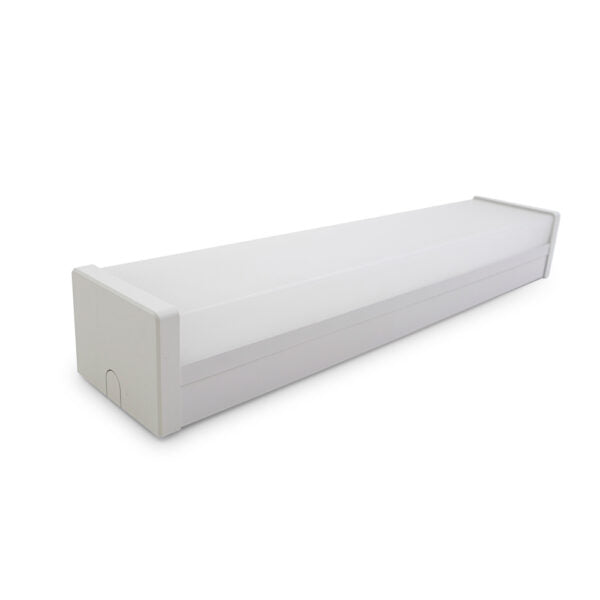

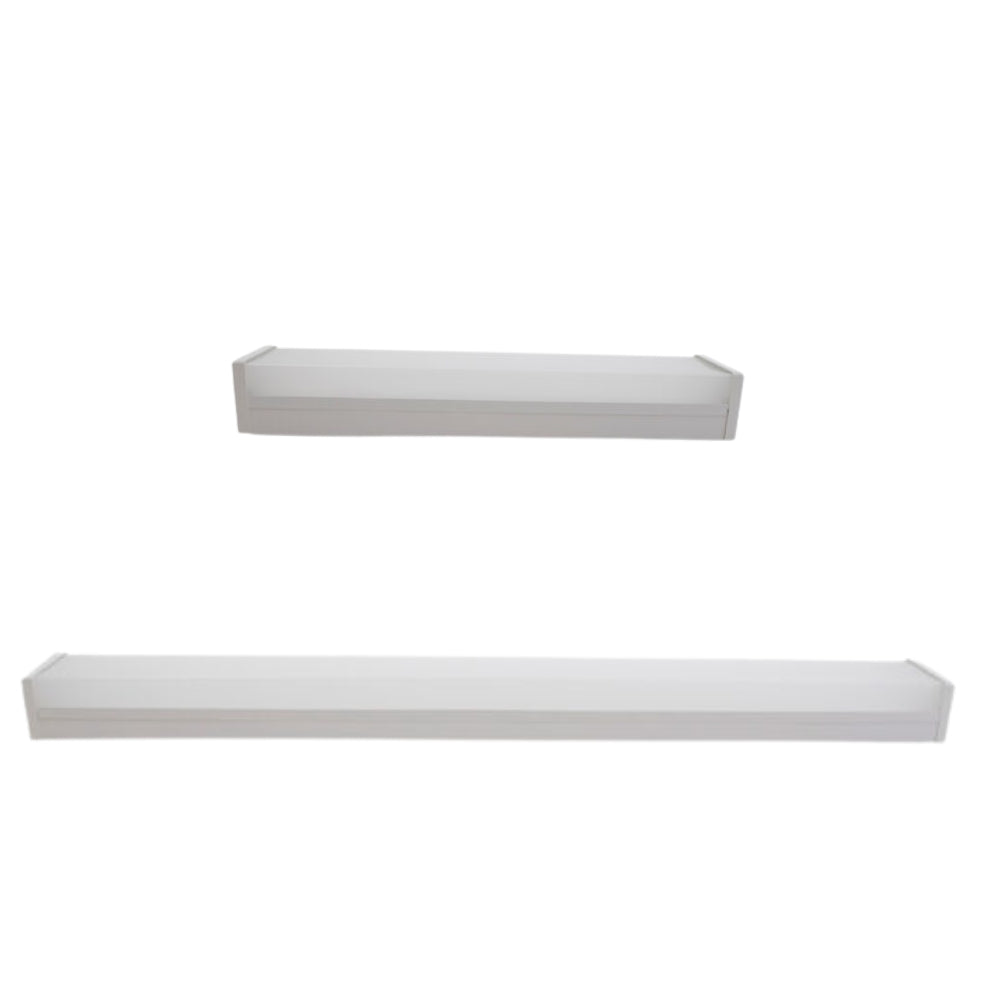

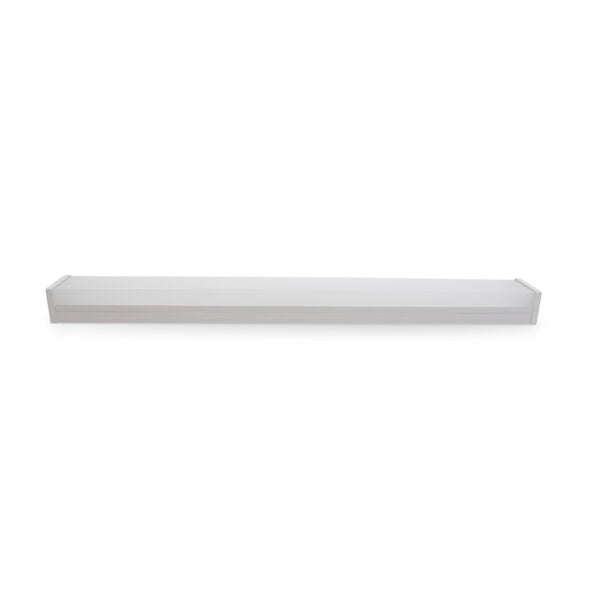

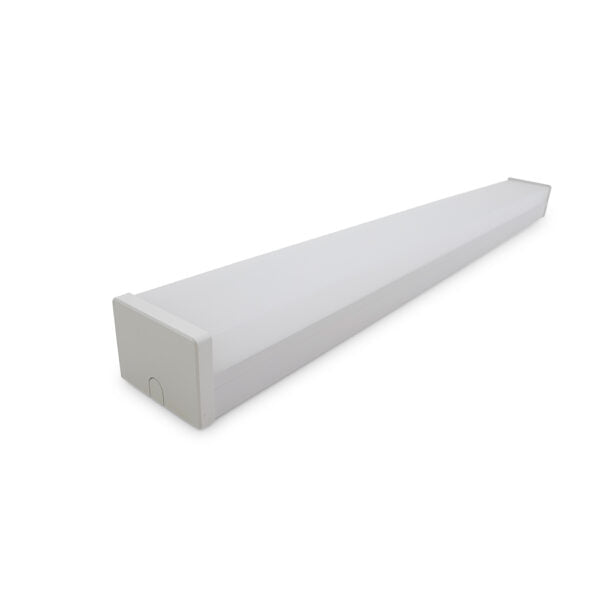

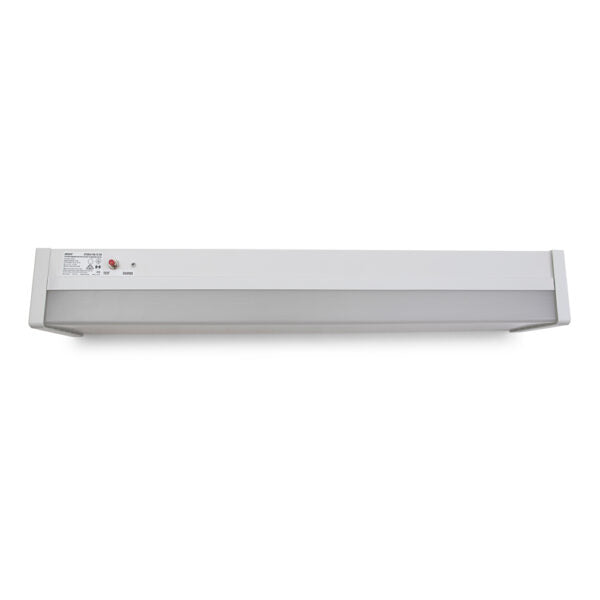

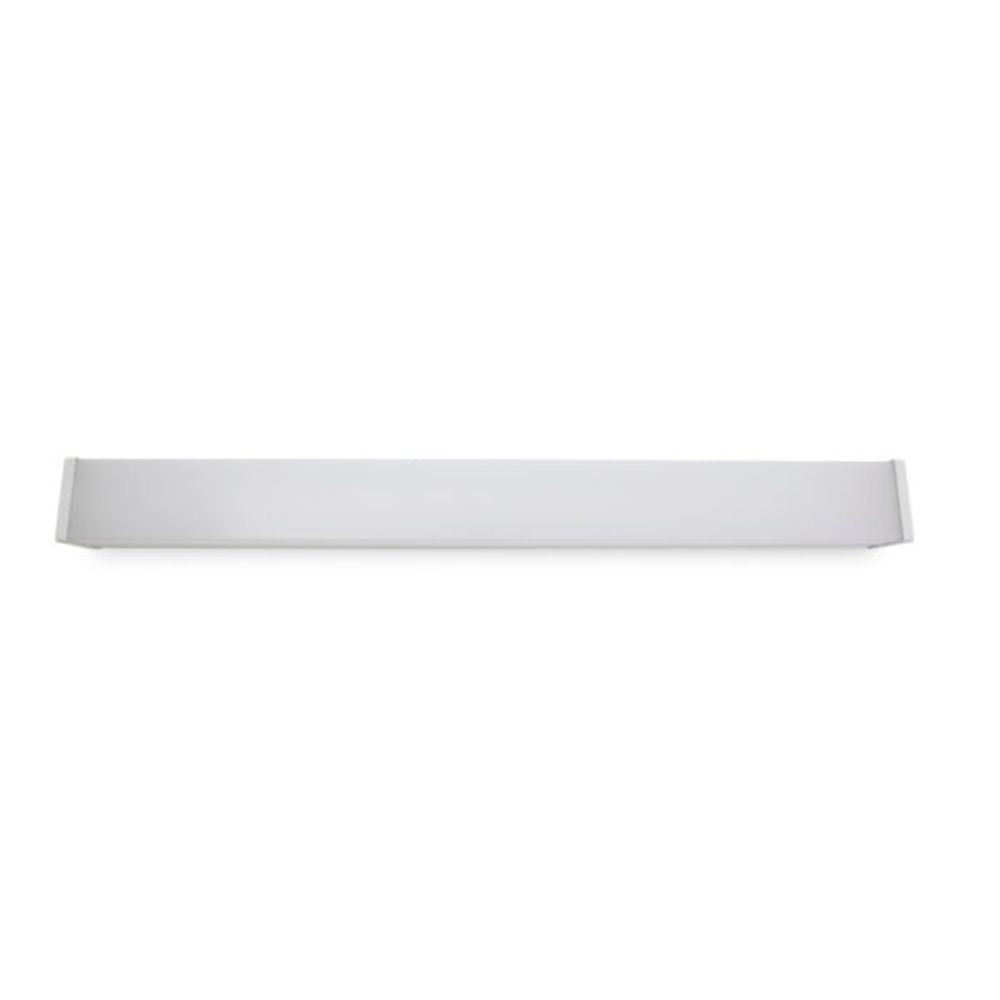

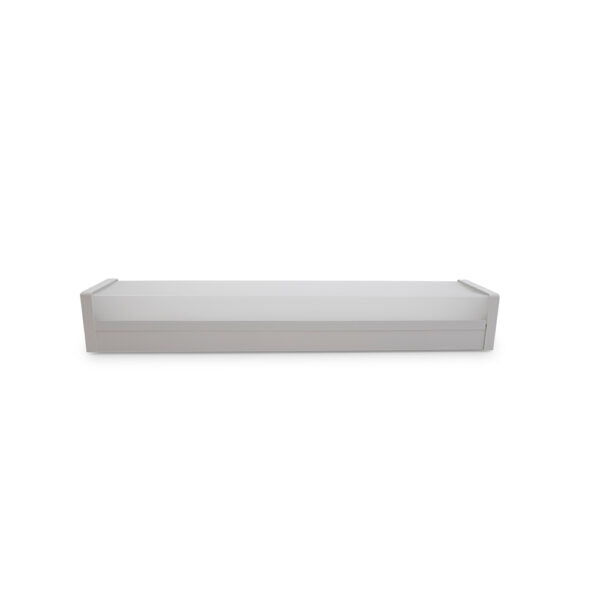

Ektor UMBRA-ADV-DIFF-EM/S LED Batten Light - 24W/38W, 600mm, 1200mm, 2FT, 4FT, Tri-Colour, Diffused, Emergency
UMBRA ADV DIFF EM/S
UMBRA ADV DIFF EM/S — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
IP Rating
IP20
Input voltage
230Vac
Maximum Wattage
24 W / 38 W / 36 W
Emergency Duration
90 mins
Key features
8-year product design life at the maximum stated ambient temperature.
LiFePO4 battery and smart charger for emergency operation.
EK-12181, EK-12186: Installation: Surface mount.
EK-12183: Microwave sensor for this exact option.
EK-12183: Corridor sensor function for this exact option.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP20
- Fitting Colour
- White
- Body Material
- Powder Coated Steel
- Diffuser Material
- PMMA
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Switch Type
- Inline
- Power Factor
- 0.9
- Input voltage
- 230Vac
- Standby Power
- 1 W
Lamp
- Colour Rendering Index (CRI)
- >80
- CCT Configuration
- TRI-CCT
- Macadam Steps (SDCM)
- 4-step MacAdam Ellipse
- Lamp/LED voltage
- 36 V
LED Lifetime
- LED Lifetime
- >60000 hrs
- LED Lifetime Ratings (Failure rate & lumen depreciation)
- Ambient Temp (°C): 25 °C: 40 °C; L70B10: >60000 hrs: >60000 hrs
- TM-21 Test Hours
- 10000 hrs
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- No
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (4 pin)
- Driver Mode
- Constant Current
- PSTLM
- 0.09
- SVM
- 0.012
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Output Power
- 3400 mW
- Replacement Battery Code
- 01302
- Emergency Duration
- 90 mins
Energy Savings Scheme
- Ipart Approval
- Yes
- REES Approval
- Yes
- VEU Approval
- Yes
Compliance
- Daily Use
- 16 hrs
Additional verified features
- Emergency battery chemistry
- LiFePO4
EK-12181 · 600mm / Without Sensor
EV-UMBRA-ADV-DIFF-600-EM-TRI
Efficiencies
- Total System Efficiency
- 107 lm/W
Electrical
- Maximum Wattage
- 24 W
- Input Current
- 0.1 A
Lamp
- Lamp/LED Current
- 480 mA
Colour temperature
- 12 Watts · 4000 K
- 1200 lm
- 12 Watts · 5000 K
- 1250 lm
- 12 Watts · 6500 K
- 1200 lm
- 22 Watts · 4000 K
- 2250 lm
- 22 Watts · 5000 K
- 2350 lm
- 22 Watts · 6500 K
- 2200 lm
Emergency (EM suffix)
- Emergency Classification
- C0:D63, C90:D32
- Emergency Lumen Output
- 400 lm
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Additional verified features
- Product design life
- 8 years at maximum ambient temperature
Features for this option
- Installation: Surface mount.
EK-12183 · 600mm / With Sensor
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
Efficiencies
- Total System Efficiency
- 107 lm/W
Electrical
- Maximum Wattage
- 24 W
- Input Current
- 0.1 A
Lamp
- Lamp/LED Current
- 480 mA
Colour temperature
- 12 Watts · 4000 K
- 1200 lm
- 12 Watts · 5000 K
- 1250 lm
- 12 Watts · 6500 K
- 1200 lm
- 22 Watts · 4000 K
- 2250 lm
- 22 Watts · 5000 K
- 2350 lm
- 22 Watts · 6500 K
- 2200 lm
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range
- 10 m
- Time Delay
- 5s-14mins
- Switched Output
- No
- Corridor Function
- Yes
- Lux Adjustment
- Yes
- Dusk Mode
- Yes
- Adjustable Hold Time
- Yes
- Adjustable Standby Level
- Yes
- Adjustable Standby Period
- Yes
- Adjustable Detection Area / Sensitivity
- Yes
Emergency (EM suffix)
- Emergency Classification
- C0:D63, C90:D32
- Emergency Lumen Output
- 400 lm
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 AS/NZS 4268
Additional verified features
- Product design life
- 8 years at maximum ambient temperature
Features for this option
- Microwave sensor for this exact option.
- Corridor sensor function for this exact option.
EK-12186 · 1200mm / Without Sensor
EV-UMBRA-ADV-DIFF-1200-EM-TRI
Efficiencies
- Total System Efficiency
- 136 lm/W
Electrical
- Maximum Wattage
- 38 W
- Input Current
- 0.2 A
Lamp
- Lamp/LED Current
- 890 mA
Colour temperature
- 20 Watts · 4000 K
- 3050 lm
- 20 Watts · 5000 K
- 3150 lm
- 20 Watts · 6500 K
- 3000 lm
- 36 Watts · 4000 K
- 4700 lm
- 36 Watts · 5000 K
- 4900 lm
- 36 Watts · 6500 K
- 4700 lm
Emergency (EM suffix)
- Emergency Classification
- C0:D63, C90:D40
- Emergency Lumen Output
- 450 lm
Compliance
- Product Design Life
- 8 years
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Features for this option
- Installation: Surface mount.
EK-12189 · 1200mm / With Sensor
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
Efficiencies
- Total System Efficiency
- 136 lm/W
Electrical
- Maximum Wattage
- 36 W
- Input Current
- 0.2 A
Lamp
- Lamp/LED Current
- 890 mA
Colour temperature
- 20 Watts · 4000 K
- 3050 lm
- 20 Watts · 5000 K
- 3150 lm
- 20 Watts · 6500 K
- 3000 lm
- 36 Watts · 4000 K
- 4700 lm
- 36 Watts · 5000 K
- 4900 lm
- 36 Watts · 6500 K
- 4700 lm
Sensor (S suffix)
- Sensor Type
- Microwave
- Detection Range
- 10 m
- Time Delay
- 5s-14mins
- Switched Output
- No
- Corridor Function
- Yes
- Lux Adjustment
- Yes
- Dusk Mode
- Yes
- Adjustable Hold Time
- Yes
- Adjustable Standby Level
- Yes
- Adjustable Standby Period
- Yes
- Adjustable Detection Area / Sensitivity
- Yes
Emergency (EM suffix)
- Emergency Classification
- C0:D63, C90:D40
- Emergency Lumen Output
- 450 lm
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 AS/NZS 4268
Additional verified features
- Product design life
- 8 years at maximum ambient temperature
Features for this option
- Microwave occupancy sensing.
- Corridor mode provides the stated sensor control during standalone operation.
Dimensions
EK-12181
- Product Height
- 93 mm
- Product Length
- 620 mm
- Product Width
- 130 mm
EK-12183
- Product Height
- 93 mm
- Product Length
- 620 mm
- Product Width
- 130 mm
EK-12186
- Product Height
- 93 mm
- Product Length
- 1230 mm
- Product Width
- 130 mm
EK-12189
- Product Height
- 93 mm
- Product Length
- 1230 mm
- Product Width
- 130 mm
Inclusions & required separately
- EK-12181: LED driver included.
- EK-12181: emergency battery / charging system included for this emergency option.
- EK-12183: LED driver included.
- EK-12183: emergency battery / charging system included for this emergency option.
- EK-12186: LED driver included.
- EK-12186: emergency battery / charging system included for this emergency option.
- EK-12189: LED driver included.
- EK-12189: emergency battery / charging system included for this emergency option.
- EK-12181: Emergency LiFePO4 battery and smart charger.
- EK-12183: Emergency LiFePO4 battery and smart charger.
- EK-12186: Emergency LiFePO4 battery and smart charger.
- EK-12189: Emergency LiFePO4 battery and smart charger.
