Supports single-sided or double-sided exit decals.
Ektor RAZOR-SWING-24M LED Emergency Exit Sign - 1.7W, IP20, Emergency
RAZOR SWING 24M
RAZOR SWING 24M — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
- DALI dimming, tuning or monitored functions require a compatible DALI control system separately; standalone operation is available only where specified for the selected model.
- EK-14545: Optional chain or rod mounting requires compatible surface and rod mounting kits, supplied separately.
- EK-14546: Optional chain or rod mounting requires compatible surface and rod mounting kits, supplied separately.
IP Rating
IP20
Input voltage
230Vac
Maximum Wattage
3.7 W
Emergency Duration
90 mins
Key features
Soft-start battery charging reduces the initial load on the electrical supply.
Emergency changeover in less than 0.5 seconds.
Chain or rod mounting is available with the compatible surface and rod mounting kits.
LiFePO4 battery and smart charger for emergency operation.
Slide-on / slide-off mounting arrangement.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP20
- Adjustability
- Adjustable
- Body Material
- Polycarbonate
- Diffuser Material
- PMMA
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 3.7 W
- Input voltage
- 230Vac
- Standby Power
- 1.7 W
Driver
- Driver Type
- DALI DT1 Emergency
- Driver Included
- Yes
- Integrated Driver
- Yes
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (5 pin)
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Classification
- C0:E6.3, C90:E16
- Emergency Output Power
- 750 mW
- Replacement Battery Code
- 01300
- Emergency Duration
- 90 mins
- Viewing Distance
- 24 m
- Decal Size
- 300 x 150 mm
- Emergency Control
- DALI Monitored (DT1)
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Additional verified features
- Emergency changeover
- <0.5 seconds
- Emergency battery chemistry
- LiFePO4
Further shared features
- Automatic emergency self-testing to the stated AS/NZS 2293 / IEC 62034 requirements.
- Supports the DALI control or emergency monitoring functions specified for this model.

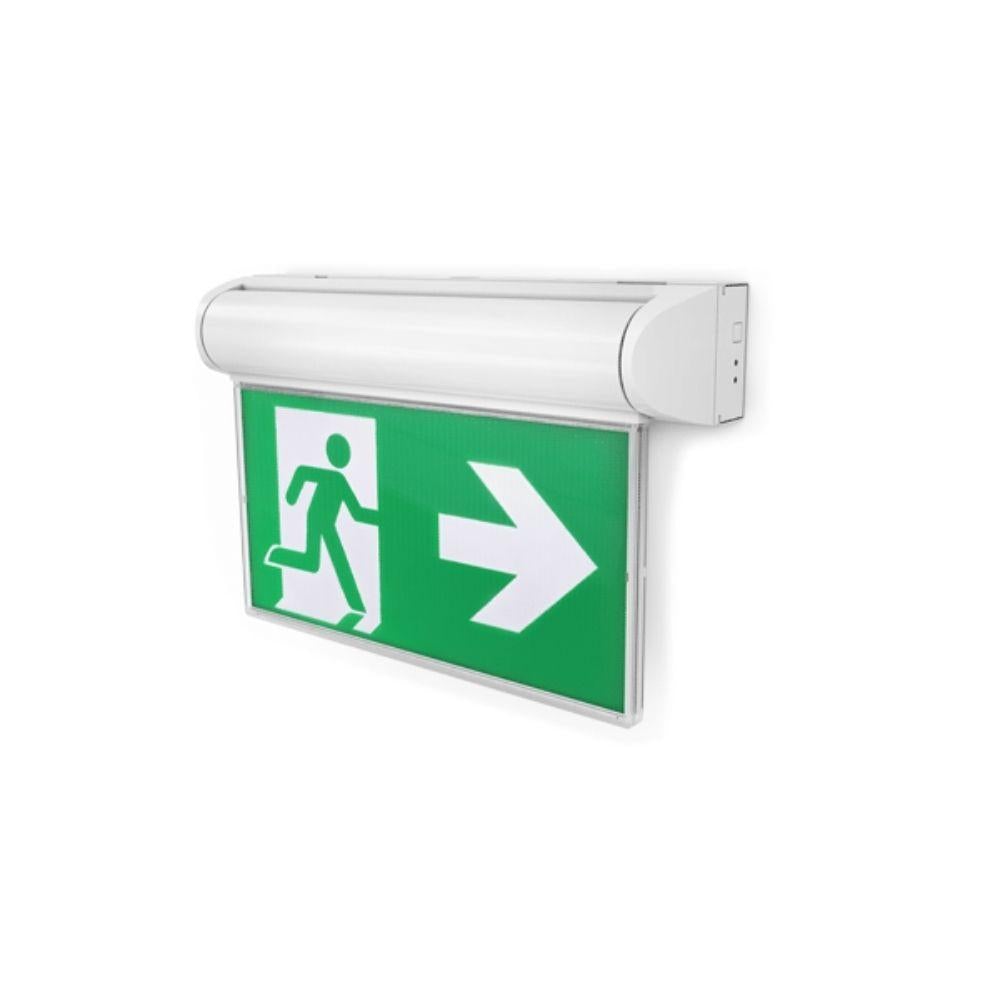

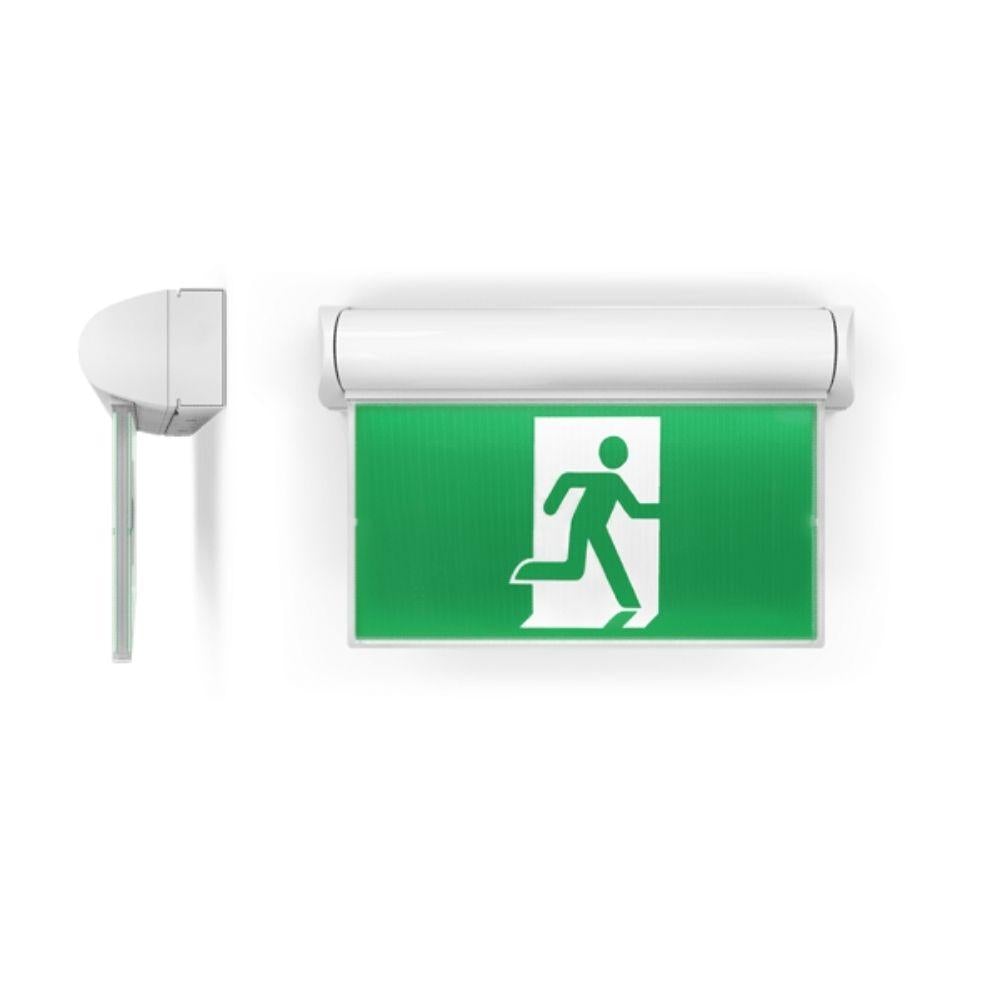

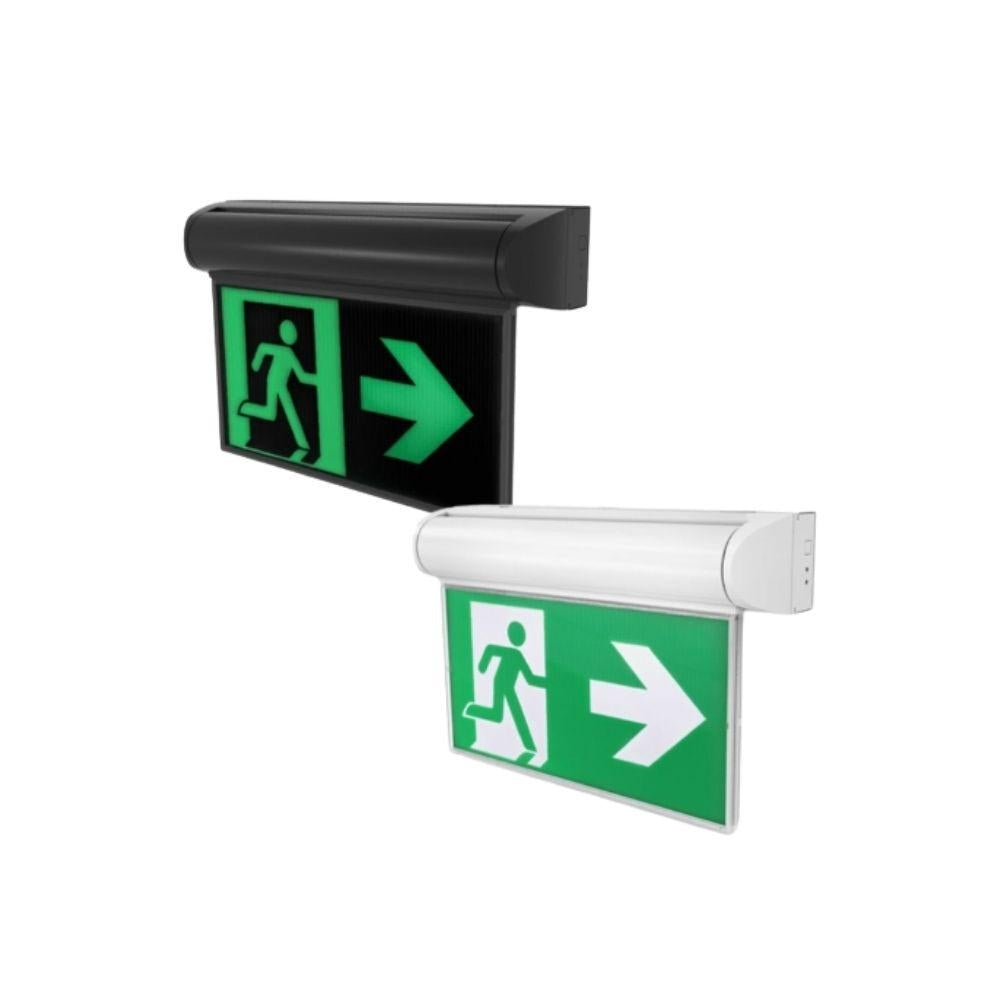

EK-14545 · White
EV-RAZOR-SWING-24M-PRO
Mechanical
- Fitting Colour
- White
Emergency (EM suffix)
- Emergency Light Source Life
- 31Y/06M
Compliance
- Product Design Life
- 12 years

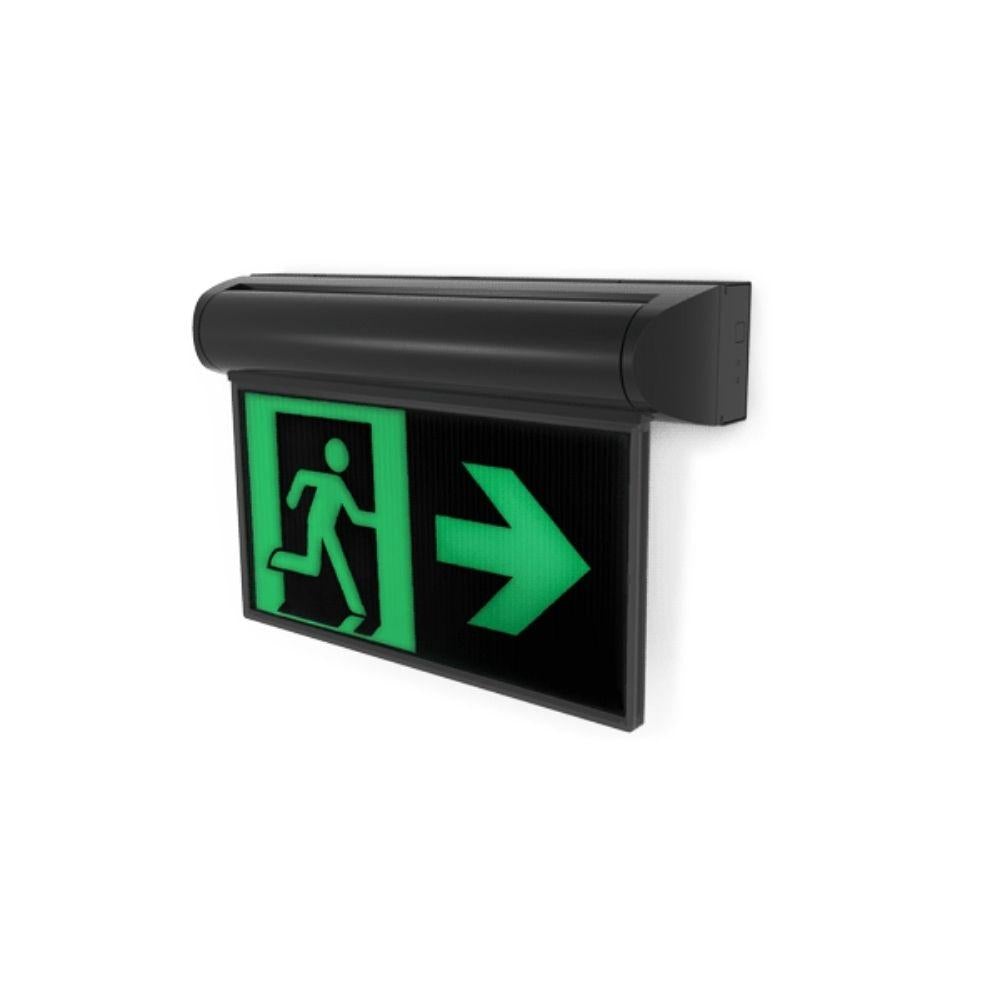

EK-14546 · Black
EV-RAZOR-SWING-24M-PRO-B
Mechanical
- Fitting Colour
- Black
Emergency (EM suffix)
- Emergency Light Source Life
- 30Y/04M

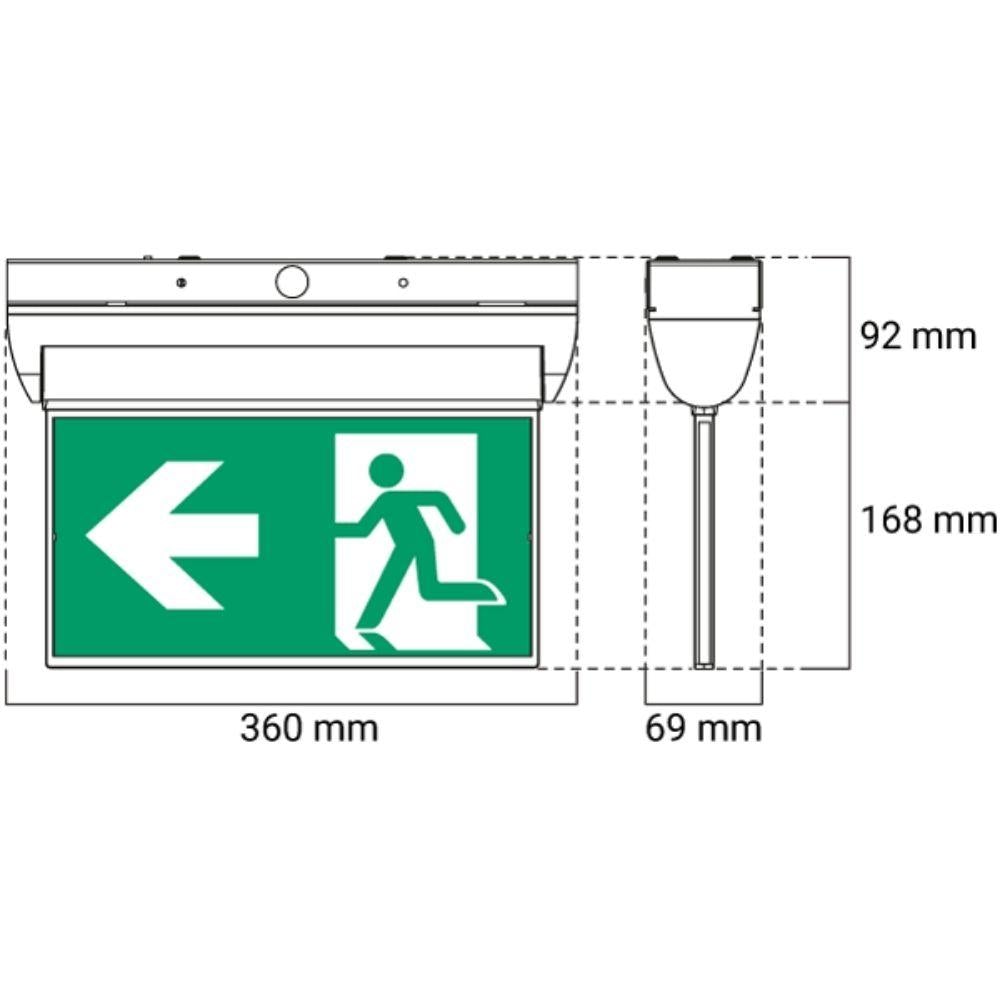

Dimensions
EK-14545
- Product Height
- 260 mm
- Product Length
- 360 mm
- Product Width
- 92 mm
EK-14546
- Product Height
- 260 mm
- Product Length
- 360 mm
- Product Width
- 92 mm
Compatible accessories
EK-14545
- 02987
- EV-RAZOR-24M-DP · Razor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
EK-14546
- 02988
- EV-RAZOR-24M-DP-B · Razor 24m decal pack - Black to suit 02687
Listed accessories are supplied separately. Match the exact selected option.
Inclusions & required separately
- EK-14545: LED driver included.
- EK-14545: emergency battery / charging system included for this emergency option.
- EK-14546: LED driver included.
- EK-14546: emergency battery / charging system included for this emergency option.
- EK-14545: Optional chain or rod mounting requires compatible surface and rod mounting kits, supplied separately.
- EK-14545: Emergency LiFePO4 battery and smart charger.
- EK-14546: Optional chain or rod mounting requires compatible surface and rod mounting kits, supplied separately.
- EK-14546: Emergency LiFePO4 battery and smart charger.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
Warranty
EK-14545
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
EK-14546
- Warranty
- 8 Year Warranty, RTB
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
