Non-maintained emergency operation with D80 classification.

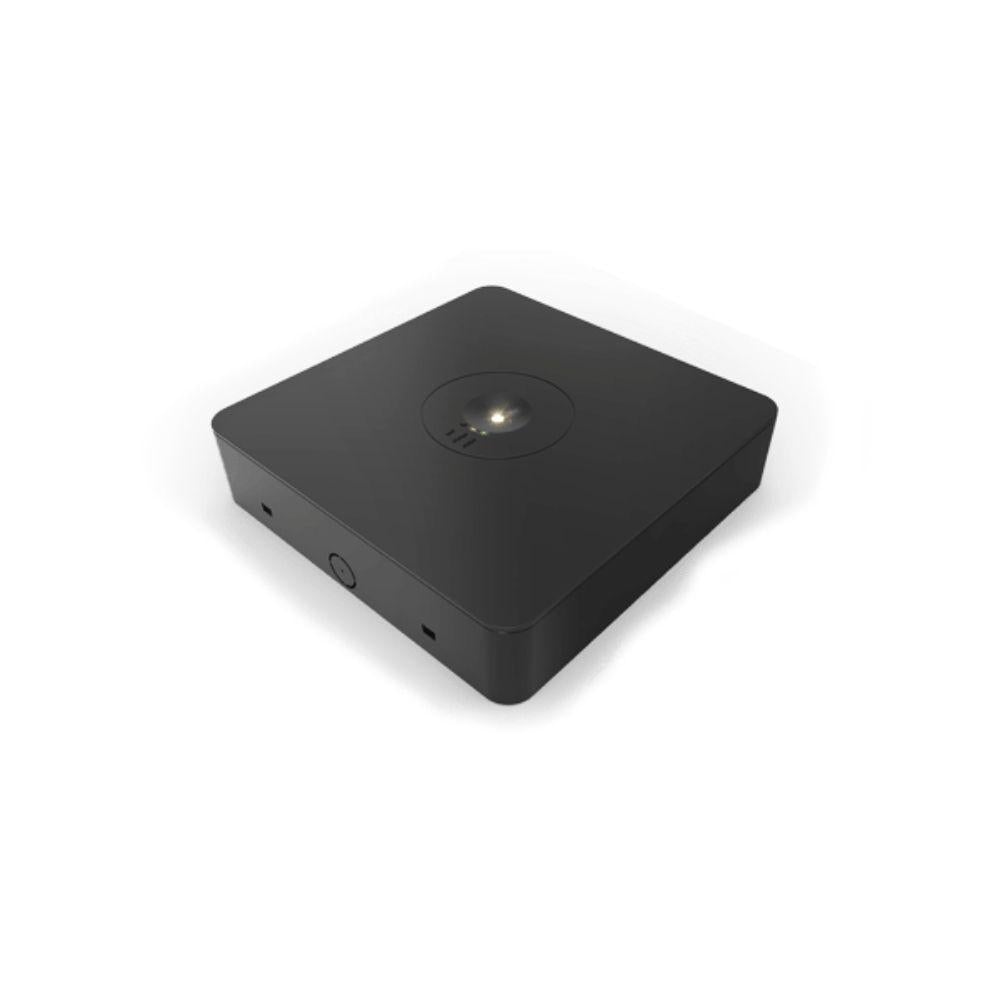

Ektor LEDFIRE-PRO-SM-LK Emergency LED Luminaire - 4.3W, IP20, Square, Surface Mounted, Emergency
LEDFIRE PRO SM LK
LEDFIRE PRO SM LK — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
- Networked Lynk monitoring requires the compatible gateway and monitoring system separately. Select a Lynk option for wireless operation; other options do not provide Lynk wireless connectivity.
IP Rating
IP20
Input voltage
230Vac
Maximum Wattage
3 W
Emergency Duration
90 mins
Key features
Soft-start battery charging reduces the initial load on the electrical supply.
Selectable emergency discharge rating.
Emergency changeover in less than 0.5 seconds.
12-year product design life at the maximum stated ambient temperature.
LiFePO4 battery and smart charger for emergency operation.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP20
- Body Material
- Polycarbonate
- Installation Type
- Surface mount
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 3 W
- Input voltage
- 230Vac
- Standby Power
- 0.25 W
Colour temperature
- LED Wattage
- 4.3 W
Driver
- Driver Type
- Wireless (IEC62386-104) with DT1
- Driver Included
- Yes
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (5 pin)
Emergency (EM suffix)
- Emergency Mode
- Non-Maintained
- Emergency Classification
- C0:D80, C90:D80
- Emergency Output Power
- 4300 mW
- Replacement Battery Code
- 01303
- Emergency Duration
- 90 mins
- Emergency Lumen Output
- 370 lm
- Emergency Control
- IEC62386-104 (Wireless DT1)
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Additional verified features
- Emergency changeover
- <0.5 seconds
- Product design life
- 12 years at maximum ambient temperature
- Emergency battery chemistry
- LiFePO4
- Standalone emergency operation
- SPU (single-point unit)
Further shared features
- Smart charging protects the battery and reduces charging power consumption.
- Standalone single-point emergency operation.
- Automatic emergency self-testing to the stated AS/NZS 2293 / IEC 62034 requirements.
- Lynk wireless emergency monitoring through a compatible system.

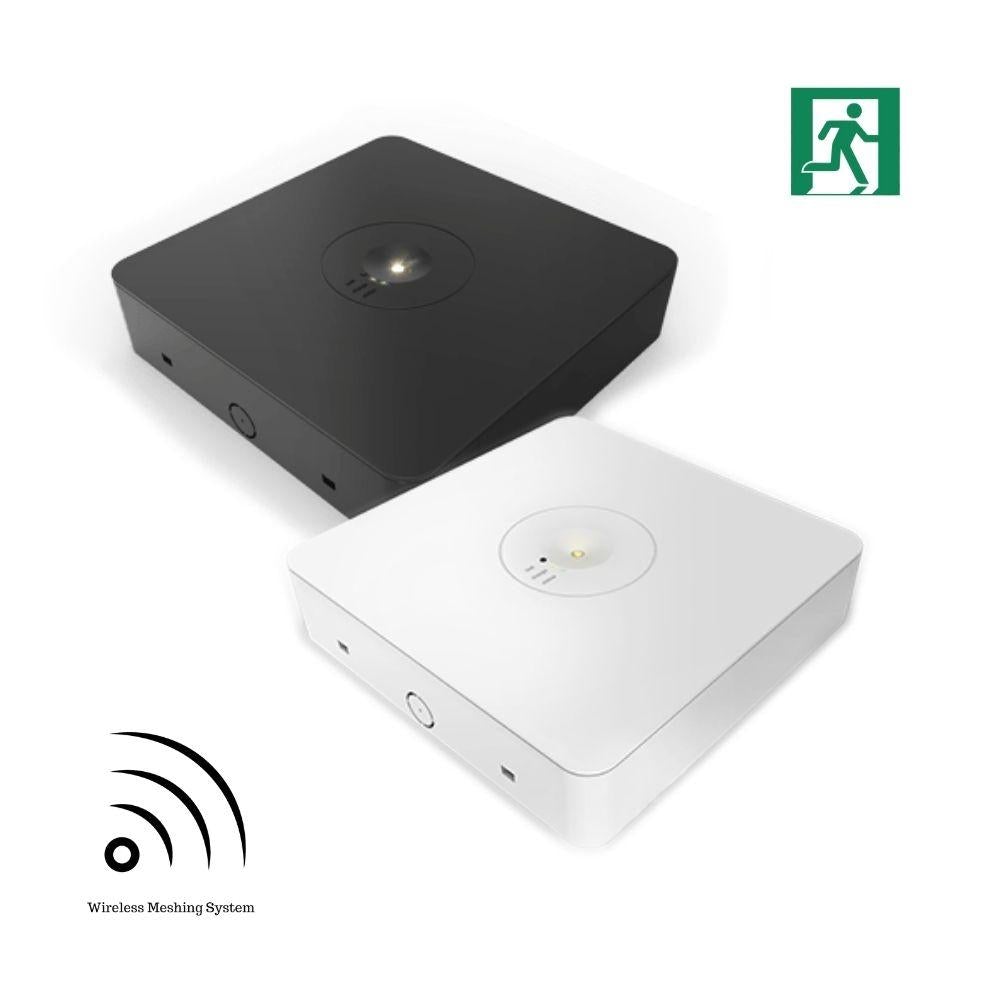

EK-10208 · White
EV-LEDFIRE-SM-PRO-LK
Mechanical
- Fitting Colour
- White
EK-10209 · Black
EV-LEDFIRE-SM-PRO-B-LK
Mechanical
- Fitting Colour
- Black
Dimensions
EK-10208
- Product Height
- 53 mm
- Product Length
- 230 mm
- Product Width
- 230 mm
EK-10209
- Product Height
- 53 mm
- Product Length
- 230 mm
- Product Width
- 230 mm
Compatible accessories
EK-10208
- 12909
- EV-LEDFIRE-SM-CAN · Surface Mount Can IP20 for EV-LEDFIRE - White
- 03923
- EV-LEDFIRE-SM-CASE · Ledfire surface mount Weatherproof case IP66
- 02004
- EV-RODMOUNT-BLK · Rodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
- 01990
- EV-RODMOUNT-WHT · Rodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
EK-10209
- 12910
- EV-LEDFIRE-SM-CAN-B · Surface Mount Can IP20 for EV-LEDFIRE - Black
- 03923
- EV-LEDFIRE-SM-CASE · Ledfire surface mount Weatherproof case IP66
- 02004
- EV-RODMOUNT-BLK · Rodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
- 01990
- EV-RODMOUNT-WHT · Rodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
Listed accessories are supplied separately. Match the exact selected option.
Inclusions & required separately
- EK-10208: LED driver included.
- EK-10208: emergency battery / charging system included for this emergency option.
- EK-10209: LED driver included.
- EK-10209: emergency battery / charging system included for this emergency option.
- EK-10208: Emergency LiFePO4 battery and smart charger.
- EK-10209: Emergency LiFePO4 battery and smart charger.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
Warranty
EK-10208
- Warranty
- 8 Year Warranty, RTB
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
EK-10209
- Warranty
- 8 Year Warranty, RTB
- Commercial Use Warranty
- 8 RTB (Total 8 Years)
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
