EK-1696: Outer ring included for larger ceiling openings.

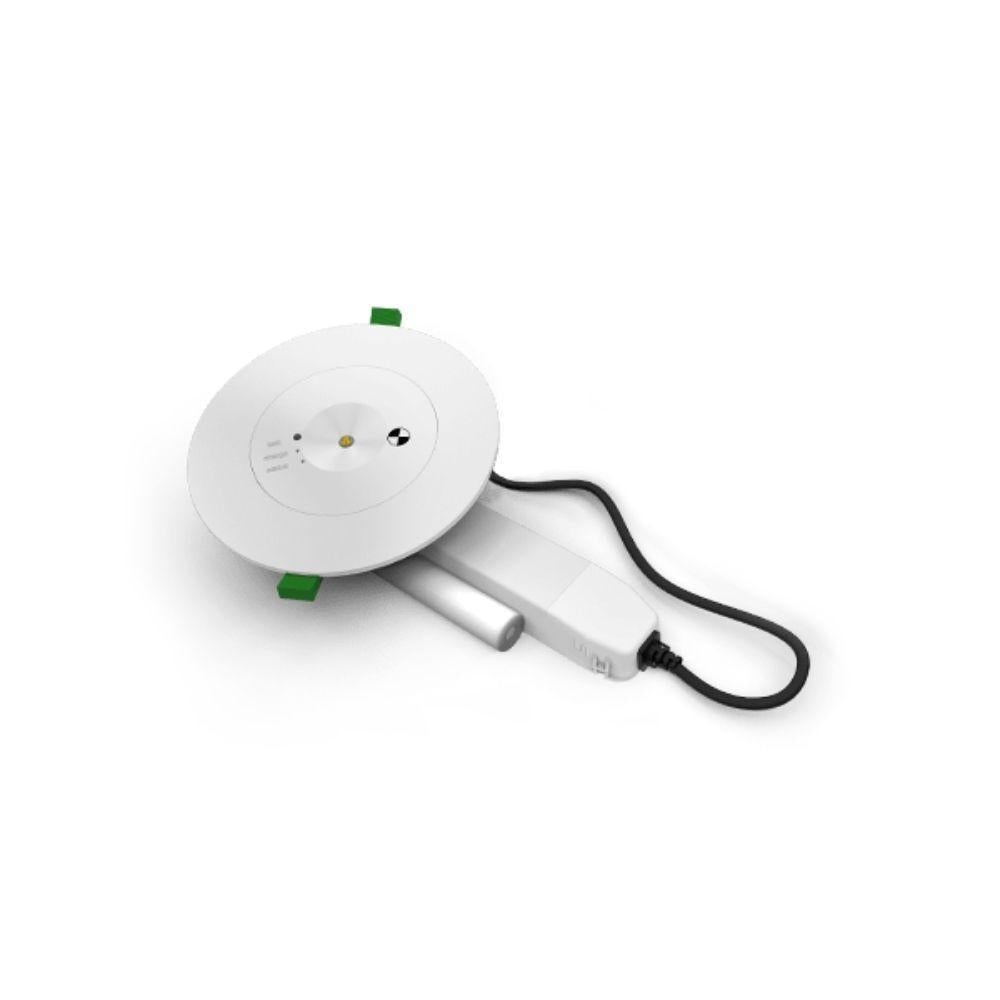

Ektor EV-LEDFIRE-CORE-B Emergency Luminaire - 1.6W
EV LEDFIRE CORE B
EV LEDFIRE CORE B — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
- EK-11405: Supplied outer ring accommodates ceiling holes up to 130 mm. Check the exact fitting dimensions and cut-out below.
IP Rating
IP44, front face only / IP44 Front Face Only
Input voltage
230 V AC, 50 Hz / 230Vac
Maximum Wattage
1.6 W
Emergency Duration
90 mins
Key features
EK-1696: Battery and smart charger included.
EK-1696: Mounting: Recessed.
EK-1696: Emergency duration: 90 minutes.
EK-11405: Non-maintained emergency operation with D50 classification.
EK-11405: Supplied outer ring accommodates ceiling holes up to 130 mm.
Technical specifications
EK-1696 · White
Mechanical & electrical
- IP rating
- IP44, front face only
- Input voltage
- 230 V AC, 50 Hz
- Ambient temperature
- 0–40 °C
- Colour
- White
- Body and inverter
- Polycarbonate
- Mounting
- Recessed
- Electrical class
- Class II
- Connection
- 1.2 m flex and plug
- Maximum total power
- 1.6 W
- Average total power
- 0.45 W
Emergency
- Operation
- Non-maintained
- Duration
- 90 minutes
- Classification
- C0:D50
- Emergency output
- 250 lm
- Lamp power
- 1.5 W
- Battery chemistry
- LiFePO4
- Battery voltage
- 6.4 V
- Replacement battery code
- 01300
- Charging time
- 16 hours
- Control
- Standalone (SPU)
Features for this option
- Outer ring included for larger ceiling openings.
- Battery and smart charger included.
- Mounting: Recessed.
- Emergency duration: 90 minutes.
EK-11405 · Black
EV-LEDFIRE-CORE-B
Mechanical
- IP Rating
- IP44 Front Face Only
- Fitting Colour
- Black
- Body Material
- Polycarbonate
- Installation Type
- Recessed
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 1.6 W
- Input voltage
- 230Vac
- Standby Power
- 0.45 W
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Flex & Plug or Lead Length
- 1200 mm
- Wiring Type
- Re-wireable Flex & Plug (2 pin)
Emergency (EM suffix)
- Emergency Mode
- Non-Maintained
- Emergency Classification
- C0:D50, C90:D50
- Emergency Output Power
- 1500 mW
- Replacement Battery Code
- 01300
- Emergency Duration
- 90 mins
- Emergency Lumen Output
- 250 lm
Compliance
- Product Design Life
- 6 years
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Additional verified features
- Included outer ring, maximum hole size
- 130 mm
- Emergency battery chemistry
- LiFePO4
- Standalone emergency operation
- SPU (single-point unit)
Features for this option
- Non-maintained emergency operation with D50 classification.
- Supplied outer ring accommodates ceiling holes up to 130 mm.
- 6-year product design life at the maximum stated ambient temperature.
- LiFePO4 battery and smart charger for emergency operation.
- Smart charging protects the battery and reduces charging power consumption.
- Standalone single-point emergency operation.
Dimensions
EK-1696
- Inner dish diameter
- 84 mm
- Outer ring diameter
- 140 mm
- Cut-out
- 70 mm with inner ring; 75–130 mm with supplied outer ring

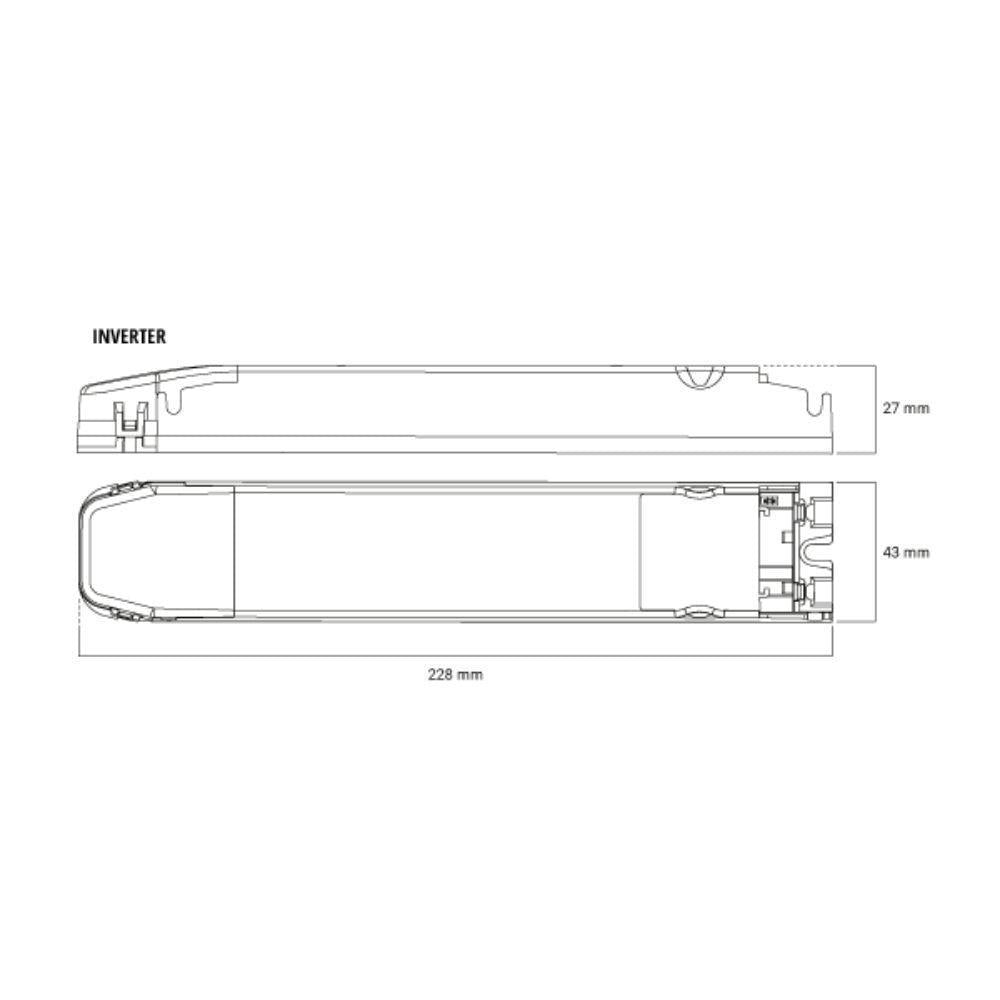

- Inverter
- 228 × 43 × 27 mm
- Dish depth
- 16 mm
EK-11405
- Product Height
- 16 mm
- Cutout
- 70 (inner), 75-130 (outer) mm
- Product Diameter
- 84 mm
Compatible accessories
EK-11405
- 12910
- EV-LEDFIRE-SM-CAN-B · Surface Mount Can IP20 for EV-LEDFIRE - Black
Listed accessories are supplied separately. Match the exact selected option.
Inclusions & required separately
- EK-1696: emergency battery / charging system included for this emergency option.
- EK-11405: LED driver included.
- EK-11405: emergency battery / charging system included for this emergency option.
- EK-11405: Supplied outer ring accommodates ceiling holes up to 130 mm. Check the exact fitting dimensions and cut-out below.
- EK-11405: Outer ring for ceiling holes up to 130 mm.
- EK-11405: Emergency LiFePO4 battery and smart charger.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
