Supports single-sided or double-sided exit decals.

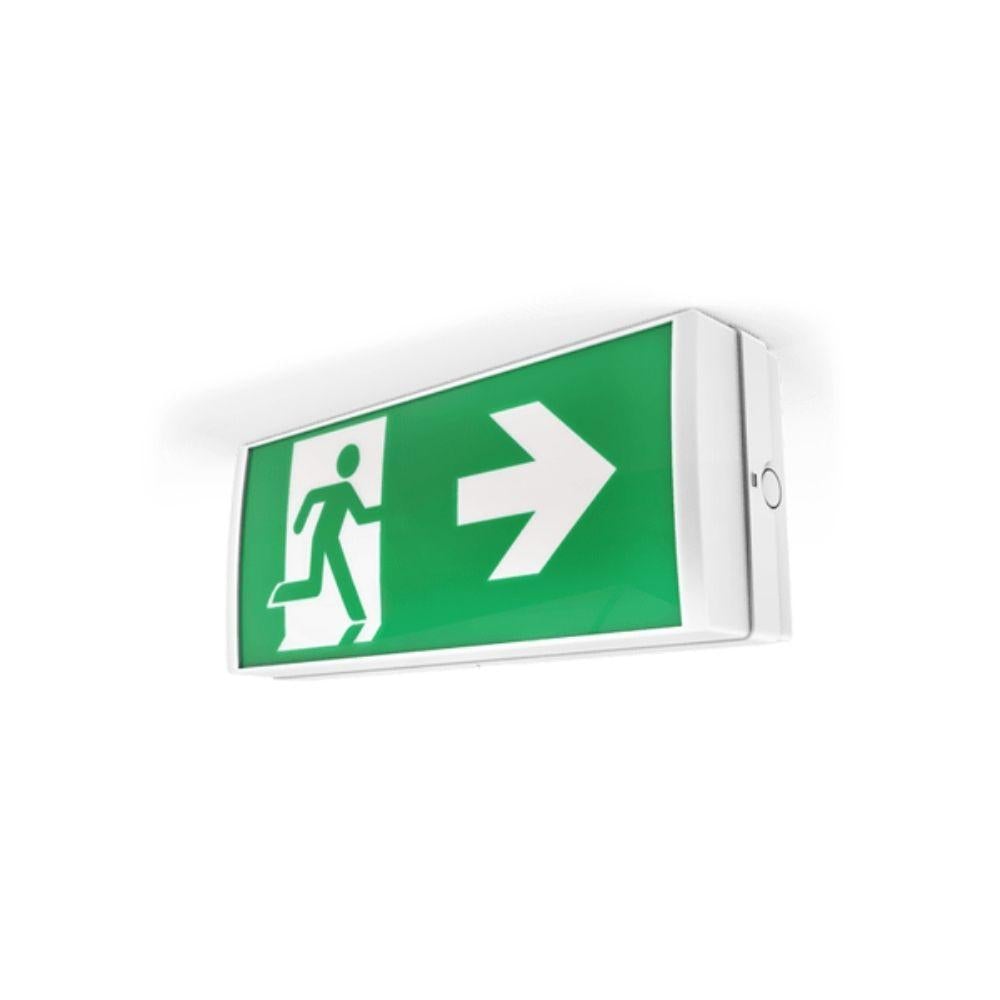

Ektor BOXIT Emergency Exit Sign - IP20
BOXIT
BOXIT — select the exact option below.
Important before you buy
- Arrange installation by a licensed electrician. The exact mounting and electrical connection for each available option are listed below.
- EK-15002: Optional rod suspension requires the compatible rod mount kit, supplied separately.
IP Rating
IP20
Input voltage
230Vac
Maximum Wattage
3.6 W
Emergency Duration
90 mins
Key features
Quick-release decals can be replaced easily.
LED light source.
6-year product design life at the maximum stated ambient temperature.
LiFePO4 battery and smart charger for emergency operation.
Standalone single-point emergency operation.
Technical specifications
Shared across the listed options
Mechanical
- IP Rating
- IP20
- Fitting Colour
- White
- Body Material
- Polycarbonate
- Diffuser Material
- PMMA
Electrical
- Working Temp Range
- 0 to 40 °C
- Input Frequency
- 50 Hz
- Maximum Wattage
- 3.6 W
- Input voltage
- 230Vac
- Standby Power
- 3.3 W
Colour temperature
- LED Wattage
- 0.95 W
Driver
- Driver Type
- Fixed output
- Driver Included
- Yes
- Integrated Driver
- Yes
- Dimmable
- No
- Wiring Type
- Re-wireable terminal block (4 pin)
Emergency (EM suffix)
- Emergency Mode
- Maintained
- Emergency Output Power
- 950 mW
- Replacement Battery Code
- 01307
- Emergency Duration
- 90 mins
- Viewing Distance
- 24 m
- Decal Size
- 340 x 150 mm
Compliance
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
Additional verified features
- Product design life
- 6 years at maximum ambient temperature
- Emergency battery chemistry
- LiFePO4
- Standalone emergency operation
- SPU (single-point unit)
EK-15001 · Wall
EV-BOXIT-WALL-24M
Mechanical
- Installation Type
- Wall mount
Emergency (EM suffix)
- Emergency Classification
- C0:E2, C90:E2, C180:C2
EK-15002 · Ceiling
EV-BOXIT-CEILING-24M
Mechanical
- Installation Type
- Surface mount
Emergency (EM suffix)
- Emergency Classification
- C0:E2.5, C90:E2.5, C180:E2
Features for this option
- Ceiling mounting is supported; rod suspension uses the compatible rod mount kit.
Dimensions

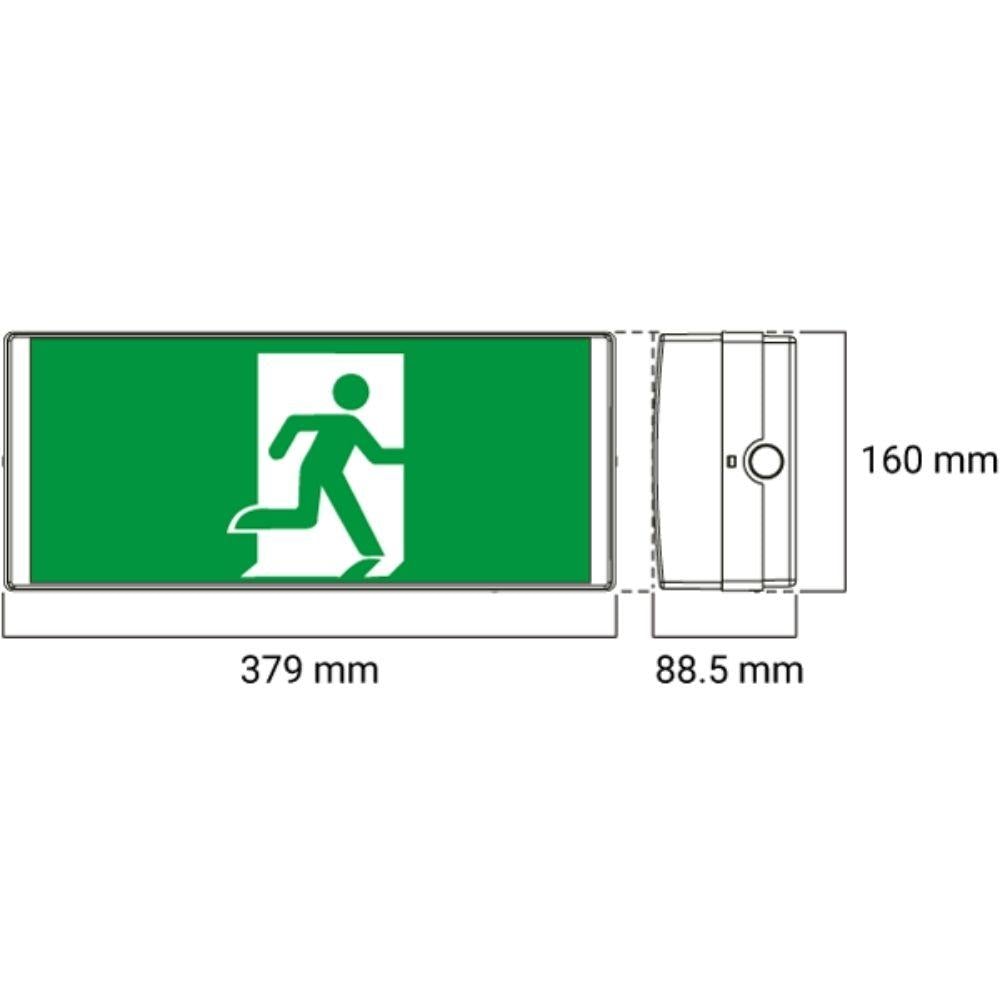

EK-15001
- Product Height
- 160 mm
- Product Length
- 379 mm
- Product Width
- 88 mm

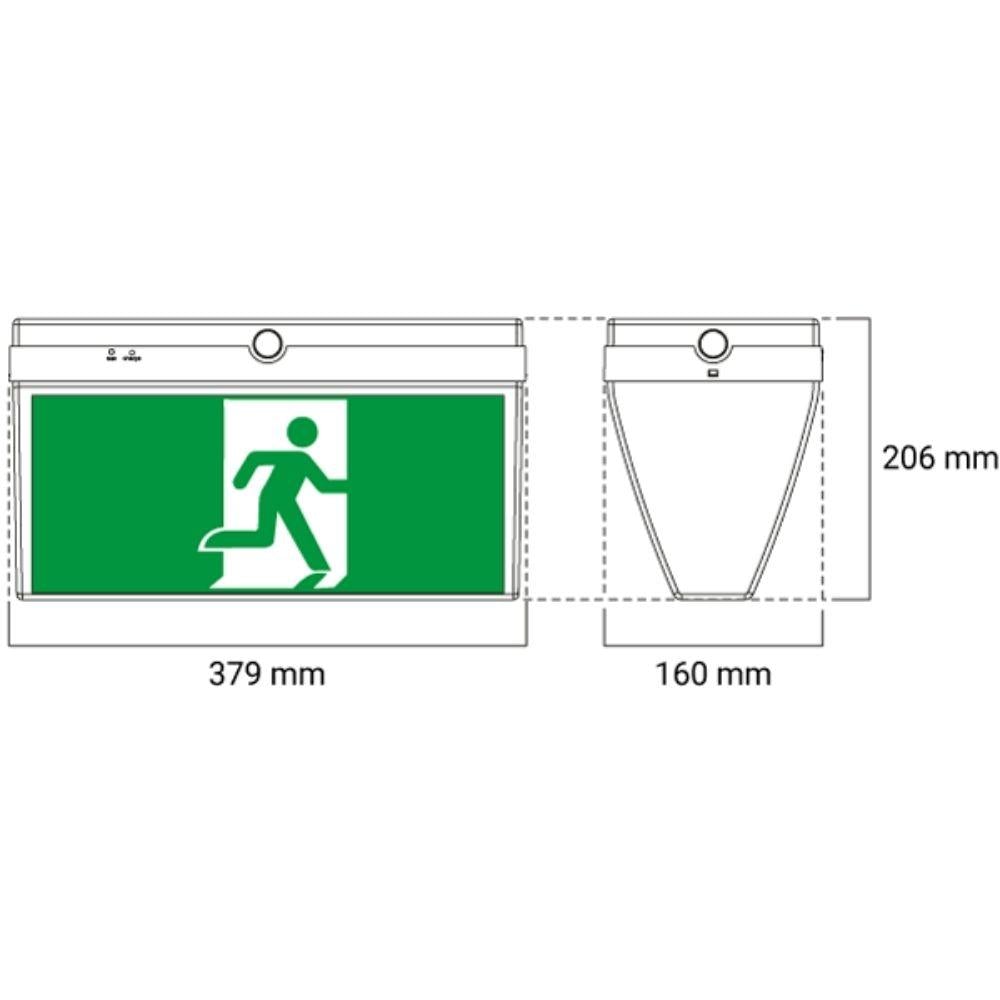

EK-15002
- Product Height
- 206 mm
- Product Length
- 379 mm
- Product Width
- 160 mm
Compatible accessories
EK-15001
- 05026

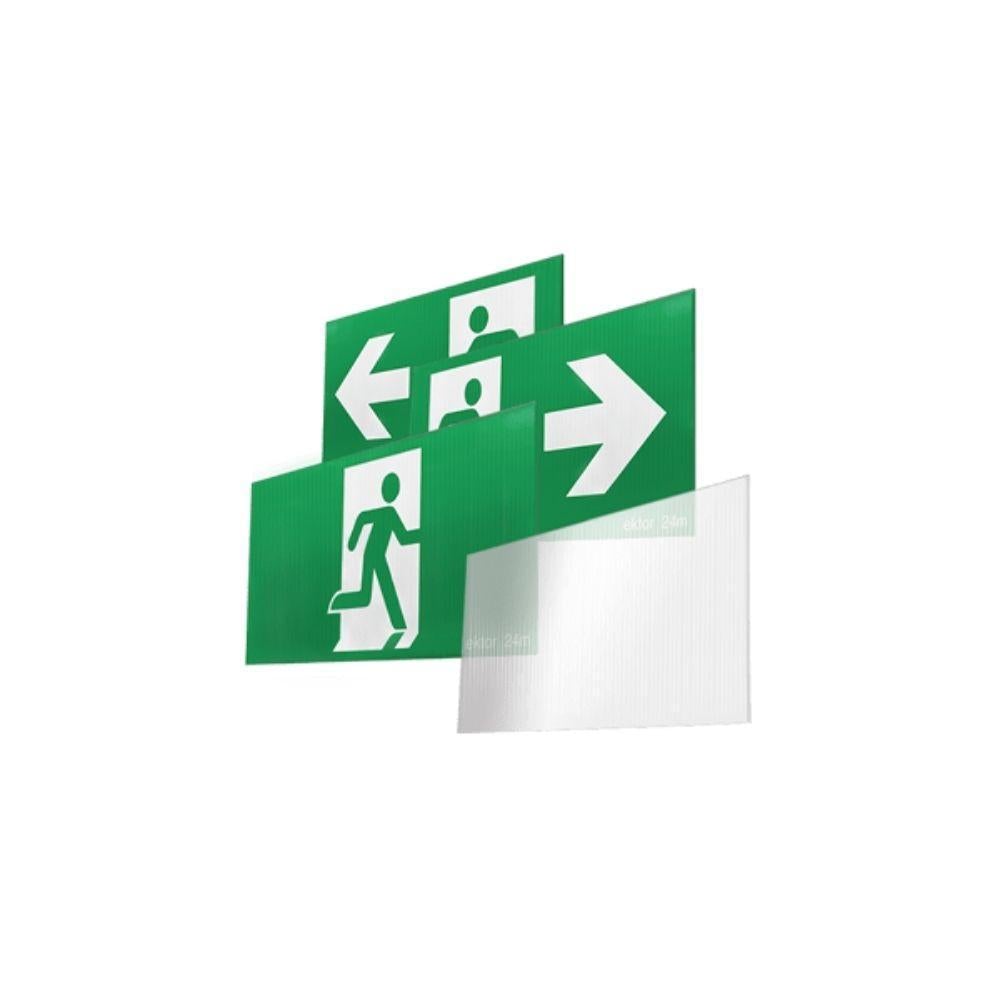

- EV-BOXIT-CLEAR DECALS · Boxit Clear Decals to suit 5001 & 5002 - 1pk
- 12572
- EV-BOXIT-DP · Boxit Decal Pack wall & ceiling - White & Green 3 x decals (left- right & straight)
EK-15002
- 05026
- EV-BOXIT-CLEAR DECALS · Boxit Clear Decals to suit 5001 & 5002 - 1pk
- 14746
- EV-BOXIT-DIFF-CEIL-24M · Boxit Ceiling Diffuser to suit 15002 with Running Man Decal Pack
- 12572
- EV-BOXIT-DP · Boxit Decal Pack wall & ceiling - White & Green 3 x decals (left- right & straight)
- 01990
- EV-RODMOUNT-WHT · Rodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
Listed accessories are supplied separately. Match the exact selected option.
Inclusions & required separately
- EK-15001: LED driver included.
- EK-15001: emergency battery / charging system included for this emergency option.
- EK-15002: LED driver included.
- EK-15002: emergency battery / charging system included for this emergency option.
- EK-15001: Emergency LiFePO4 battery and smart charger.
- EK-15002: Optional rod suspension requires the compatible rod mount kit, supplied separately.
- EK-15002: Emergency LiFePO4 battery and smart charger.
Installation & maintenance
- Follow the supplied manufacturer instructions for commissioning, charging, emergency testing and maintenance. Use the listed replacement battery code for the exact option.
Warranty
EK-15001
- Warranty
- 5 Year Warranty, First 2 Years Onsite
EK-15002
- Warranty
- 5 Year Warranty, First 2 Years Onsite
Subject to the manufacturer’s warranty conditions and stated operating limits. Any stated on-site service is subject to Australian installation, eligibility and service availability.
