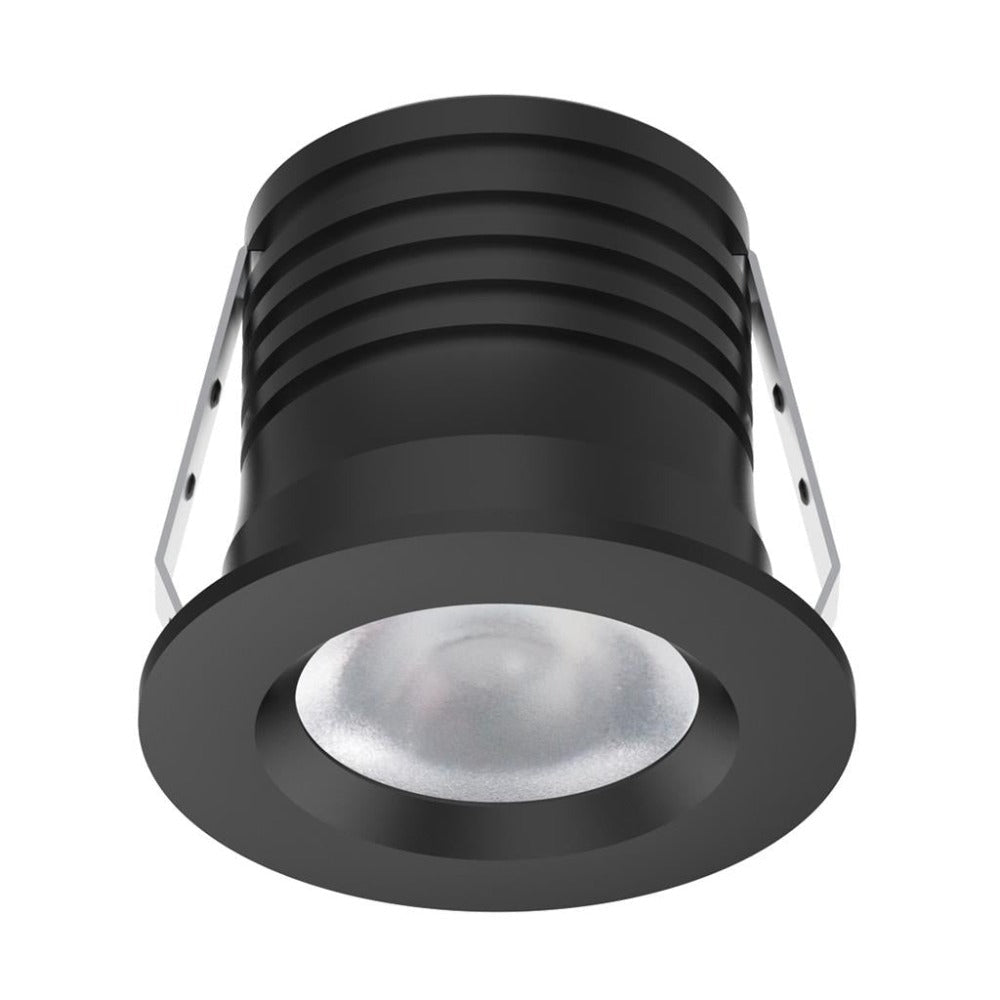

Domus PICO-3-DALI LED Downlight - 3W, Tri-Colour, DALI Dimmable, IP40, Round, Fixed
PICO-3-DALI
DALI Dimmable 3W Mini Round LED Fixed Tricolour Downlight IP40

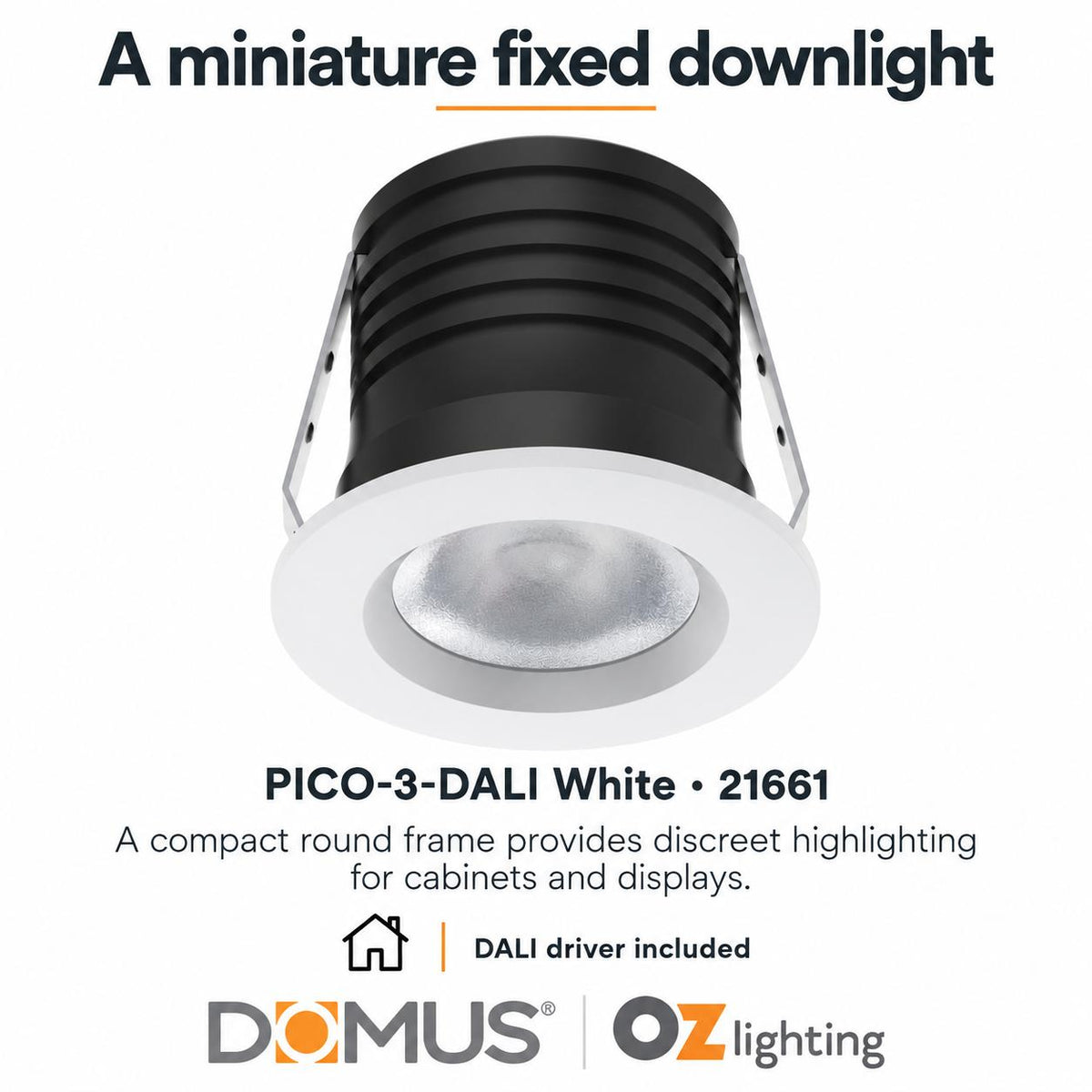

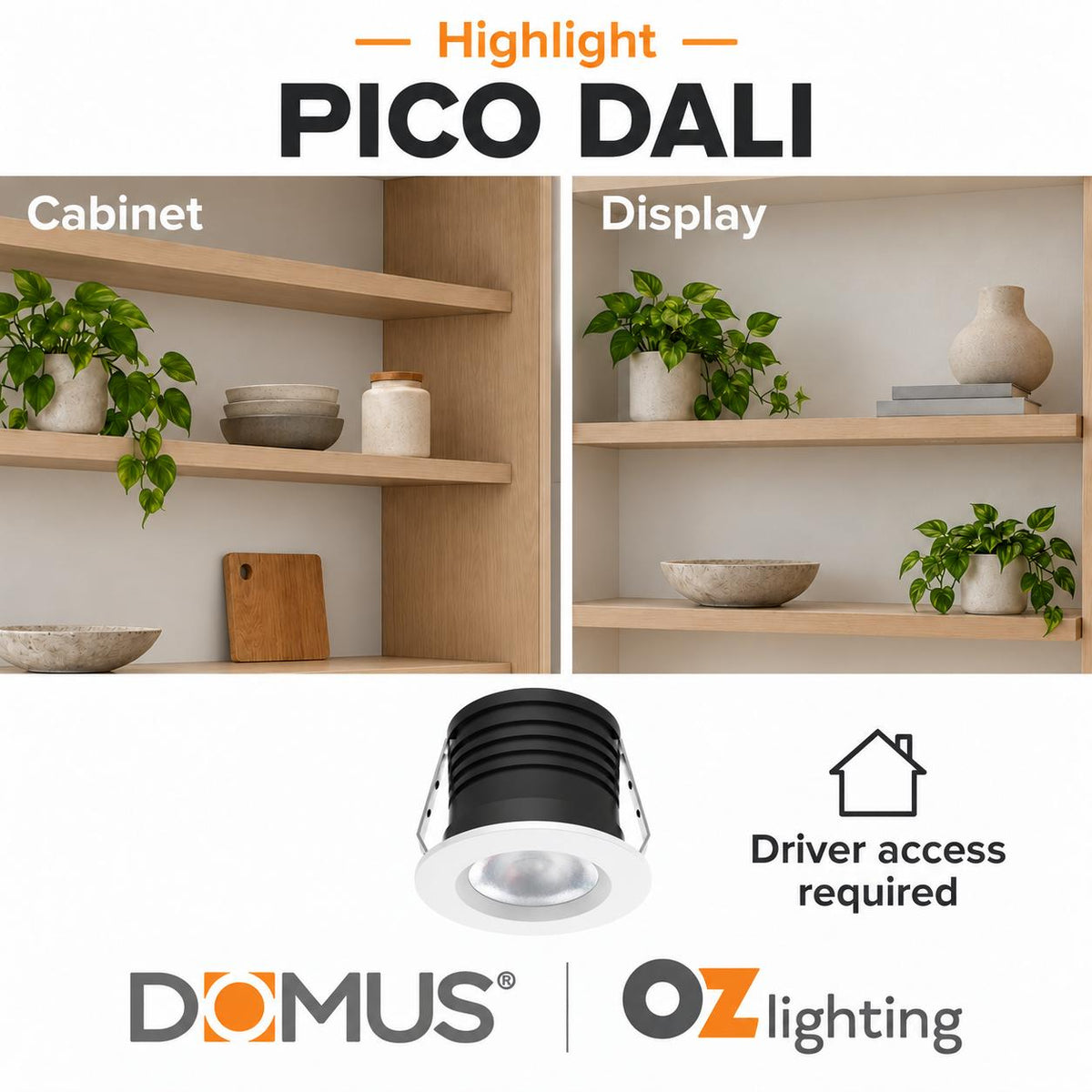

The PICO Series is a miniature downlight range that offers a great solution for cabinet lighting, display lighting, or for applications where a wall wash effect is required. The Downlight is available in a 3W fixed frame and in the choice of a Black or Satin White powder coated finish. The 24° optical lens diffuser is perfectly matched with the COB high performing LED chipset. Suitable for displays, cabinet lighting, and wall washing, or almost any application where discreet highlighting is required. Complete with a DALI Dimmable LED driver and flex and plug. PLEASE NOTE DALI DRIVER DOES NOT FIT THROUGH CUTOUT HOLE - PLEASE CONSIDER INSTALLATION ACCESSIBILTY BEFORE PURCHASING DALI Dimmable TRIO Tri-Colour Switchable DALI Driver Dimensions: L: 120mm x W: 52mm x H: 30mm

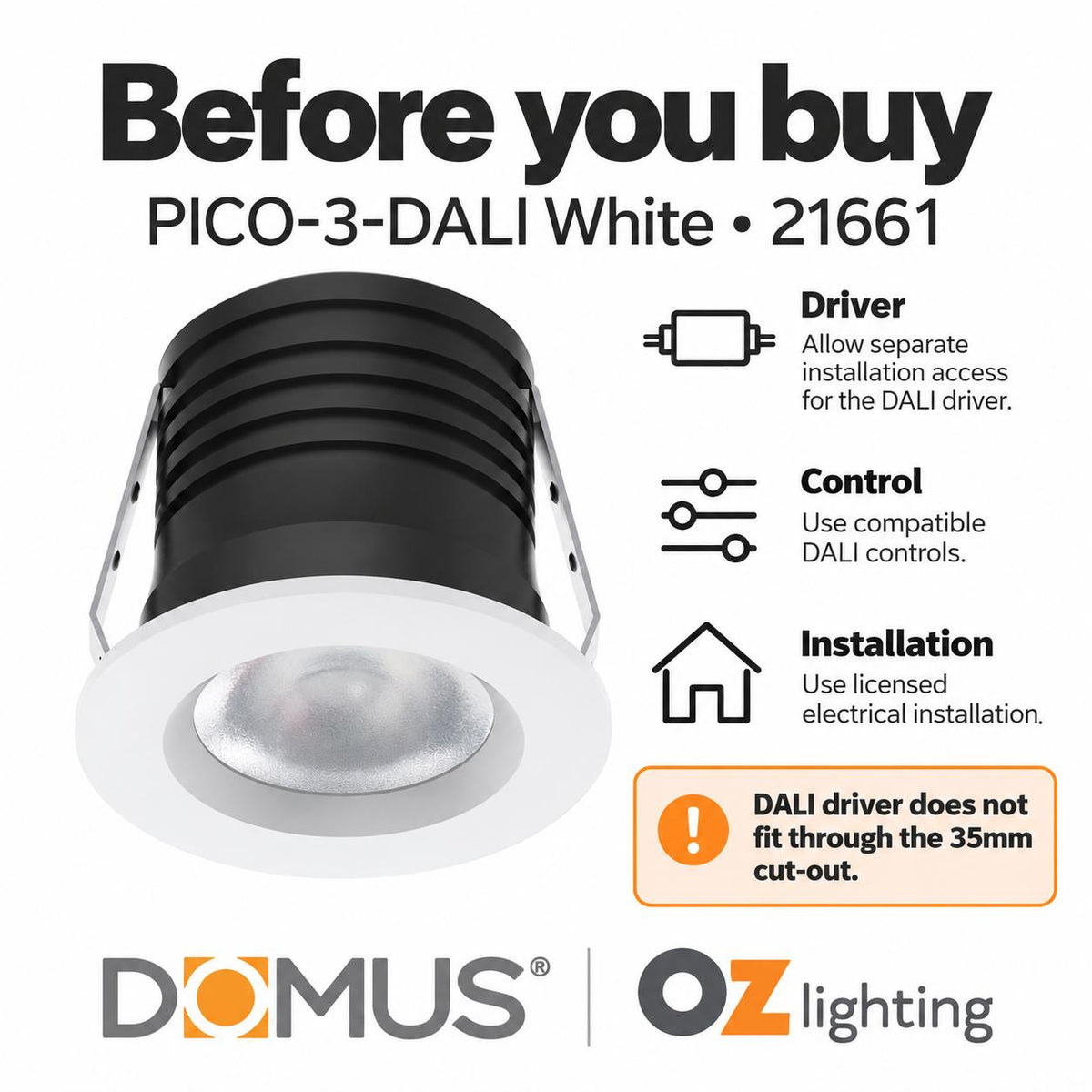

Before you buy
DALI control compatibility is required. Confirm the selected model, cut-out or mounting requirements and ceiling clearance. Licensed electrical installation is required.
Key highlights
Input voltage
(V): 240V AC
Power
3W LED
IP rating
IP40

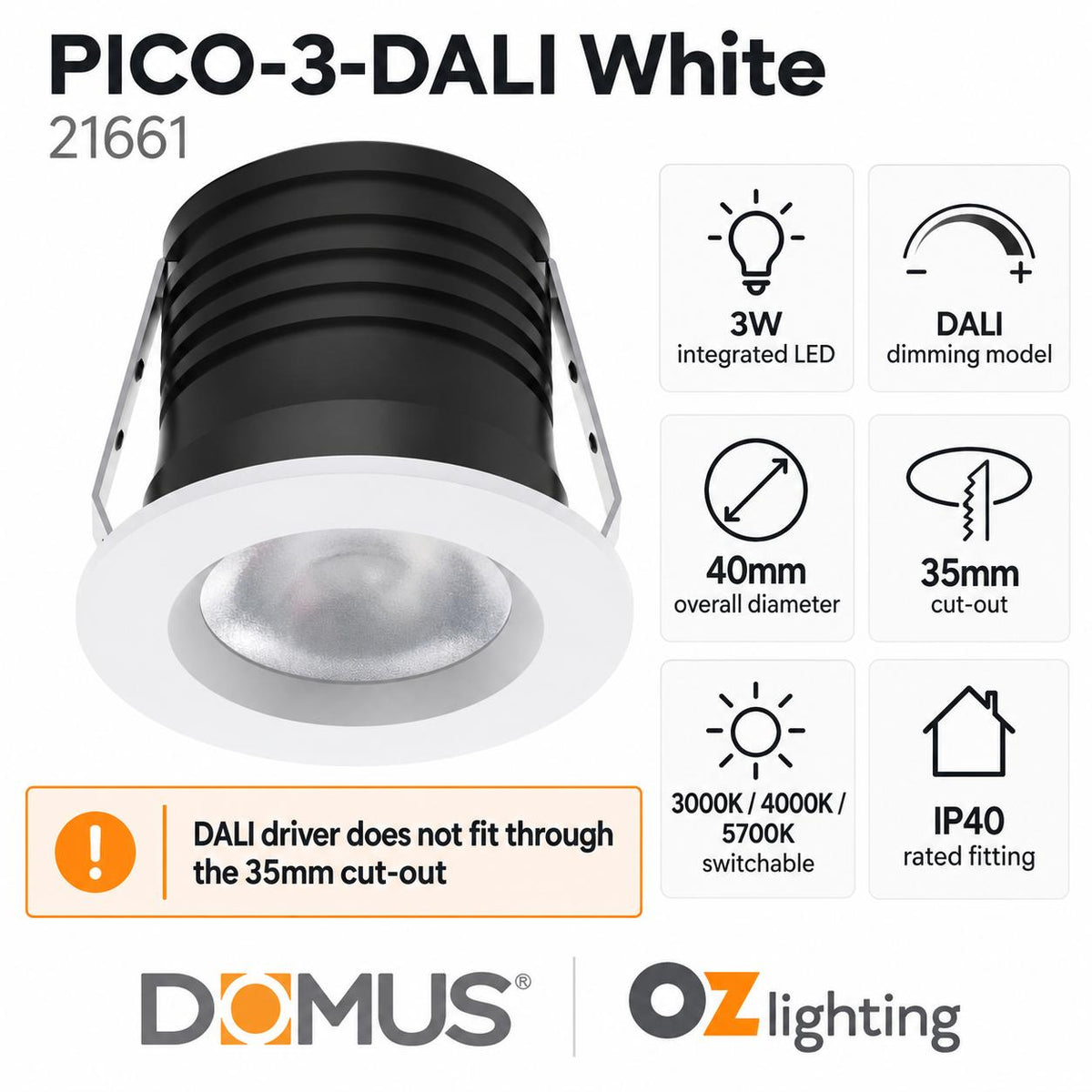

Colour Temperature
3000K/4000K/5700K (Switchable)
Beam angle
24°
Cut-out diameter
Ø35mm Overall Diameter: Ø40mm W: 35mm x H: 26mm
Product details
Exact variants
2 current Shopify options; exact order codes are listed below.
Technical specifications
- Input voltage
- (V): 240V AC
- Power
- 3W LED
- IP rating
- IP40
- LED type
- COB
- Dimmable
- Yes
- Lumen Output
- 180Lm/210Lm
- Colour Temperature
- 3000K/4000K/5700K (Switchable)
- Beam angle
- 24°
- Cut-out diameter
- Ø35mm Overall Diameter: Ø40mm W: 35mm x H: 26mm
- Cut-out
- Diameter: Ø35mm Overall Diameter: Ø40mm W: 35mm x H: 26mm
- Dimensions
- Cutout Diameter: Ø35mm Overall Diameter: Ø40mm W: 35mm x H: 26mm
- Dimension
- s:
Options & order codes
- White
- DL-21661
- Black
- DL-21662
What’s included & required separately
Included: the selected product or component matching the chosen Shopify variant.
Warranty
3-year replacement warranty.
