Domus CELL-9-5CCT-D75 LED Downlight - 9W, 5-CCT, Dimmable, Fixed, Deepset
CELL-9-5CCT-D75 · verified current variants

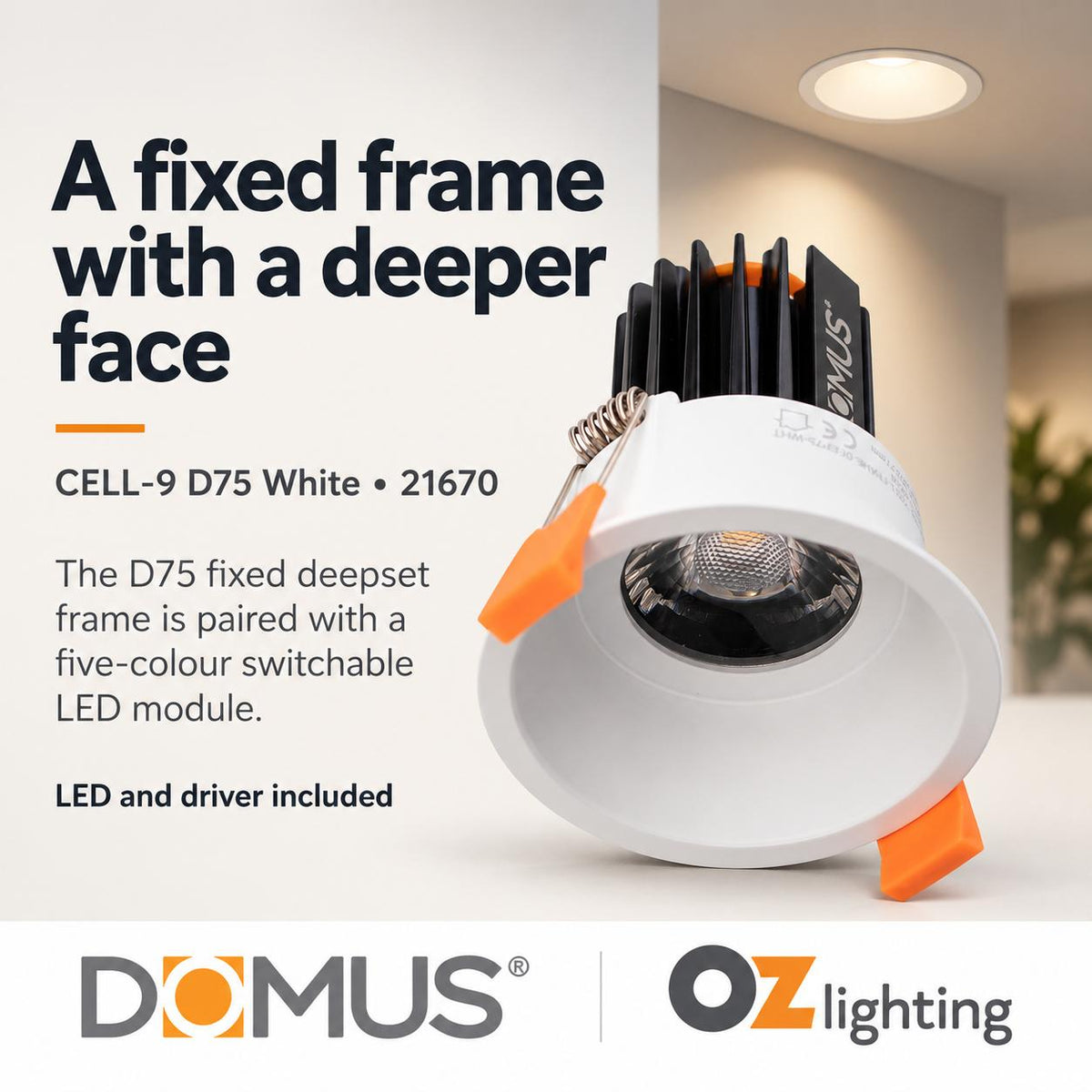

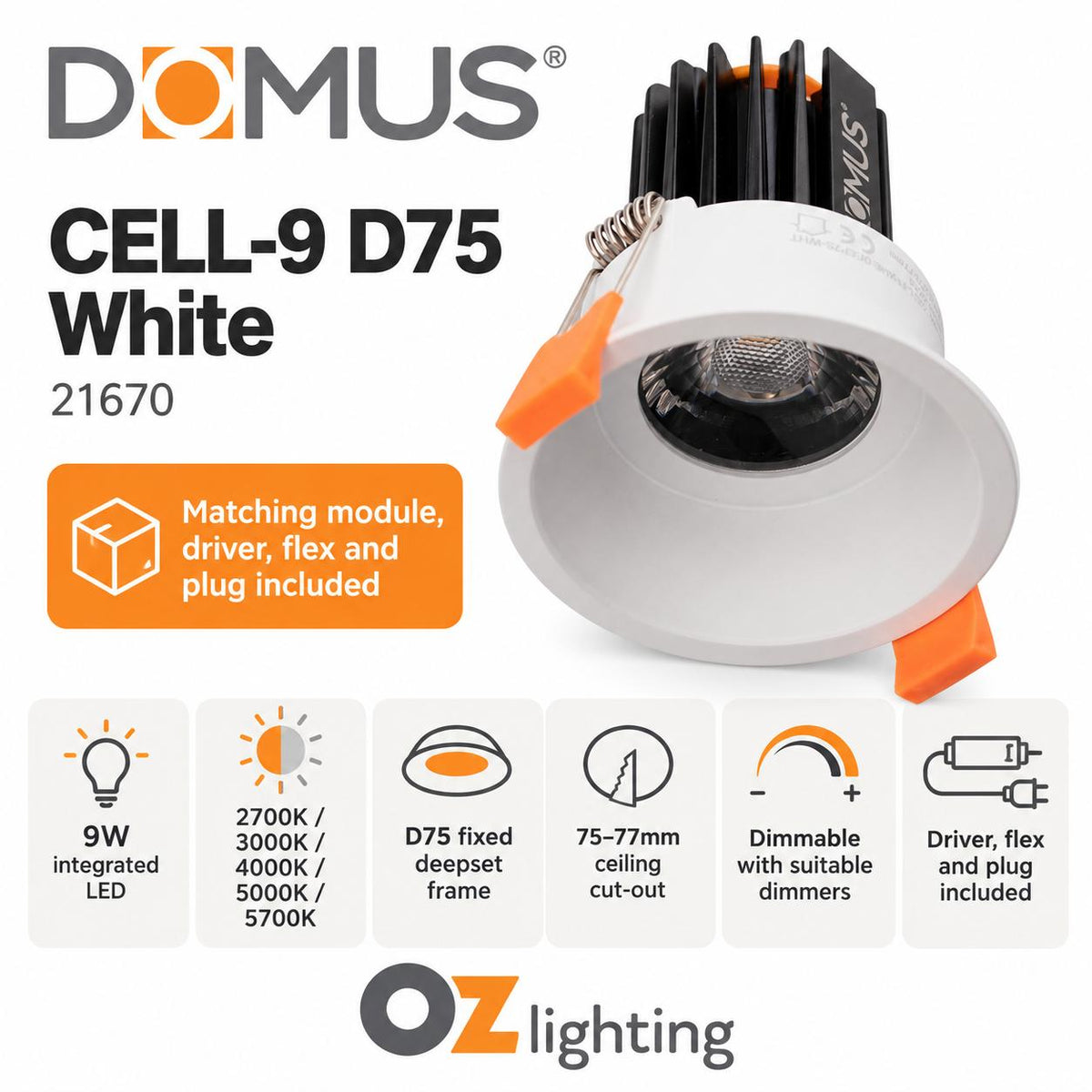

CELL-9-5CCT-D75 - 9W LED 5-CCT Switchable Dimmable D75 Mini Fixed Deepset Downlight
The CELL-9-5CCT-D75 KIT is a plug and play LED lamp module and LED driver set. They are the perfect solution for residential homes to commercial projects such as hotels, clubs, pubs and bars. Designed not only as a replacement for traditional halogen lamps in most applications but also as a replaceable LED lamp and driver set for a range of click in frames, as a complete downlight solution. For retrofit, it’s as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the CELL lamp and LED driver. It suits most MR16 downlight frames, depending on height. As a complete lamp and…

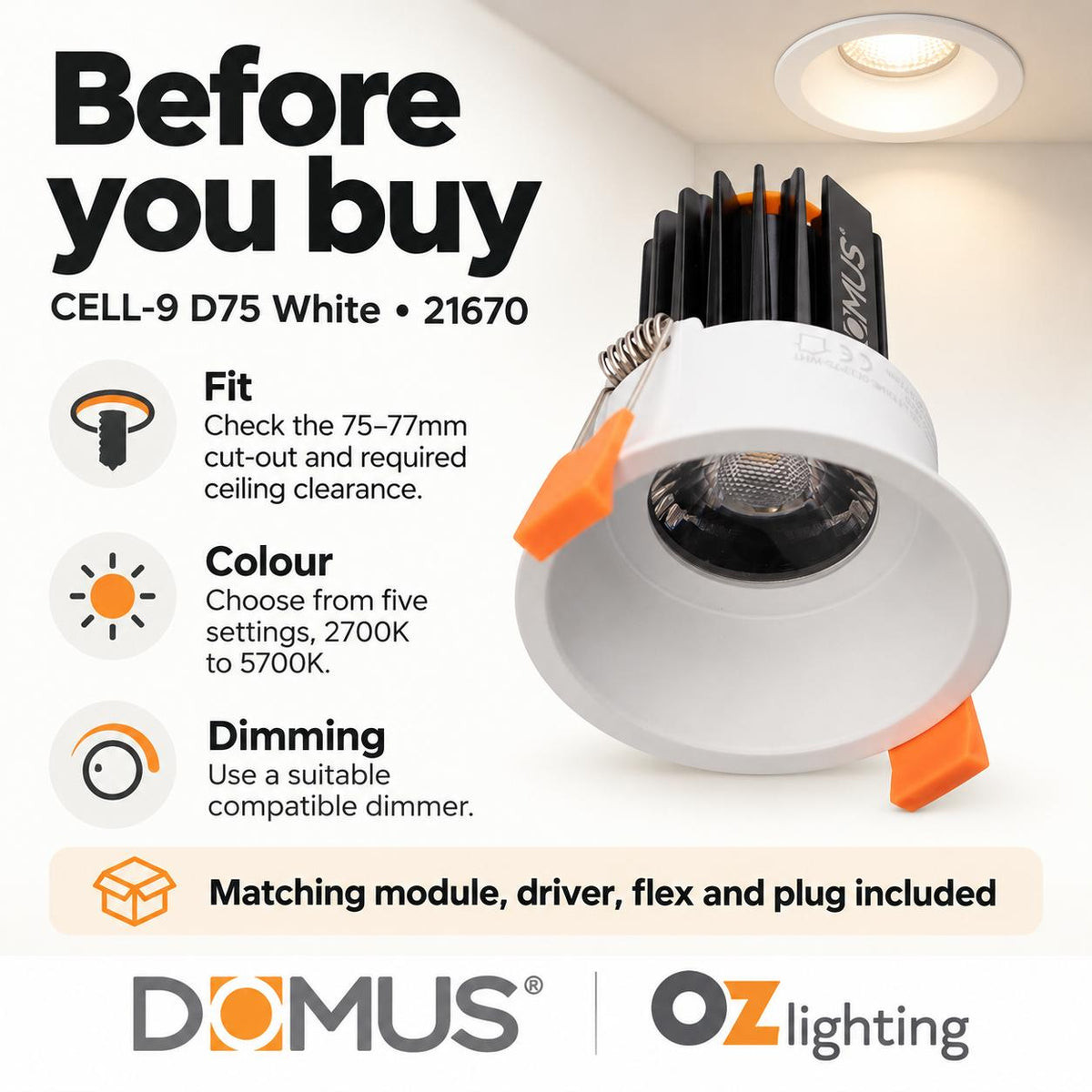

Before you buy
Confirm the exact frame style, cut-out and ceiling clearance. The selected kit includes the matching CELL module, dimmable driver, flex and plug.
Key highlights
(V): 240V AC
9W LED
IP44
Aluminium
Diameter: Ø75-77mm Overall Diameter: Ø85mm Height: 96mm
Product details
2 current Shopify options; order codes are listed below.
The CELL-9-5CCT-D75 KIT is a plug and play LED lamp module and LED driver set. They are the perfect solution for residential homes to commercial projects such as hotels, clubs, pubs and bars. Designed not only as a replacement for traditional halogen lamps in most applications but also as a replacea
Aluminium
Diameter: Ø75-77mm Overall Diameter: Ø85mm Height: 96mm
Technical specifications
- Input voltage
- (V): 240V AC
- Power
- 9W LED
- IP rating
- IP44
- LED type
- COB
- Dimmable
- Yes
- Lumen Output
- 649Lm/660Lm/717Lm/755Lm/772Lm
- Material
- Aluminium
- Colour Temperature
- 2700K/3000K/4000K/5000K/5700K (Switchable)
- Cut-out
- Diameter: Ø75-77mm Overall Diameter: Ø85mm Height: 96mm
- Dimensions
- Cutout Diameter: Ø75-77mm Overall Diameter: Ø85mm Height: 96mm
Options & order codes
- White
- DL-21670
- Black
- DL-21671
What’s included & required separately
Included: Product in the selected Shopify variant.
Purchase requirements are stated in the “Before you buy” panel above.
Warranty
3-year replacement warranty.
