Domus ASTRA-TRIO LED Cabinet Light - 3.6W, 12V, Tri-Colour, Colour Switchable, Recessed, Surface Mounted - DRIVER REQUIRED
ASTRA-TRIO
3.6W 12V Tri-Colour Switchable Recessed/Surface Mounted LED Cabinet Light - DRIVER REQUIRED

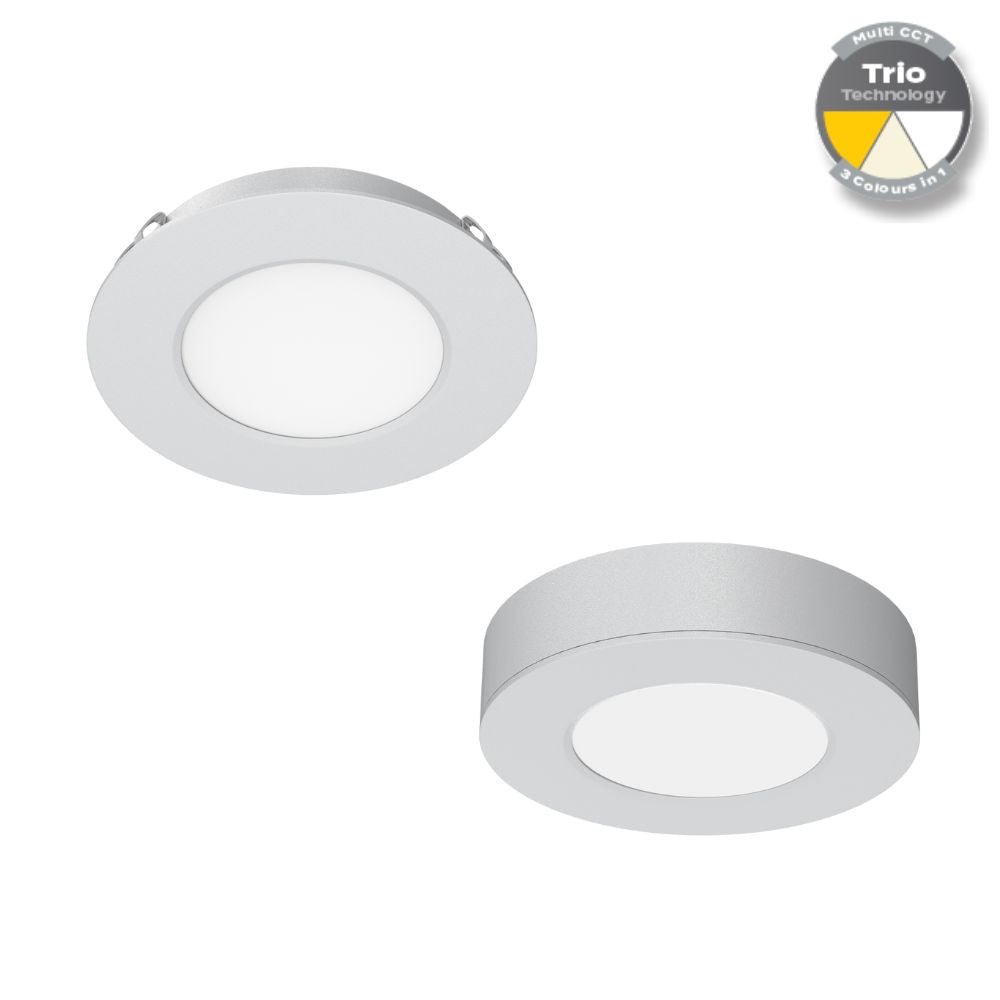

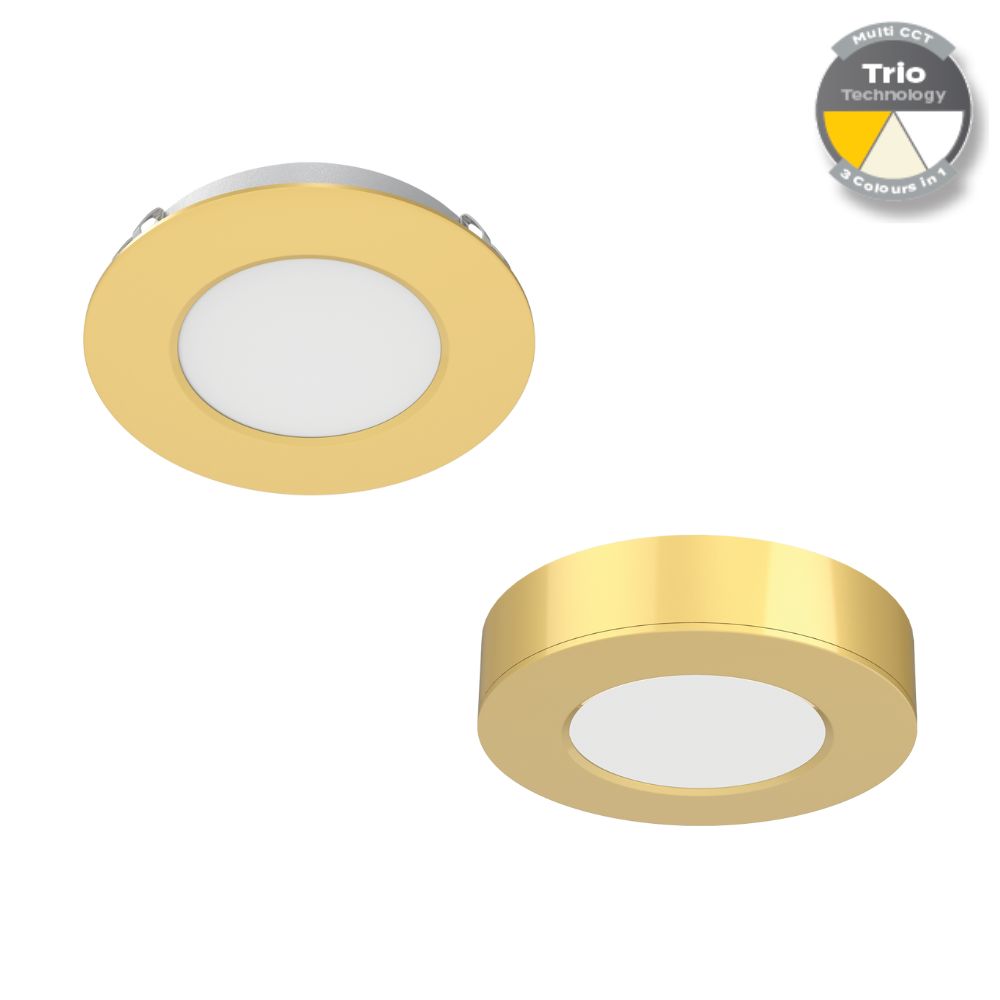

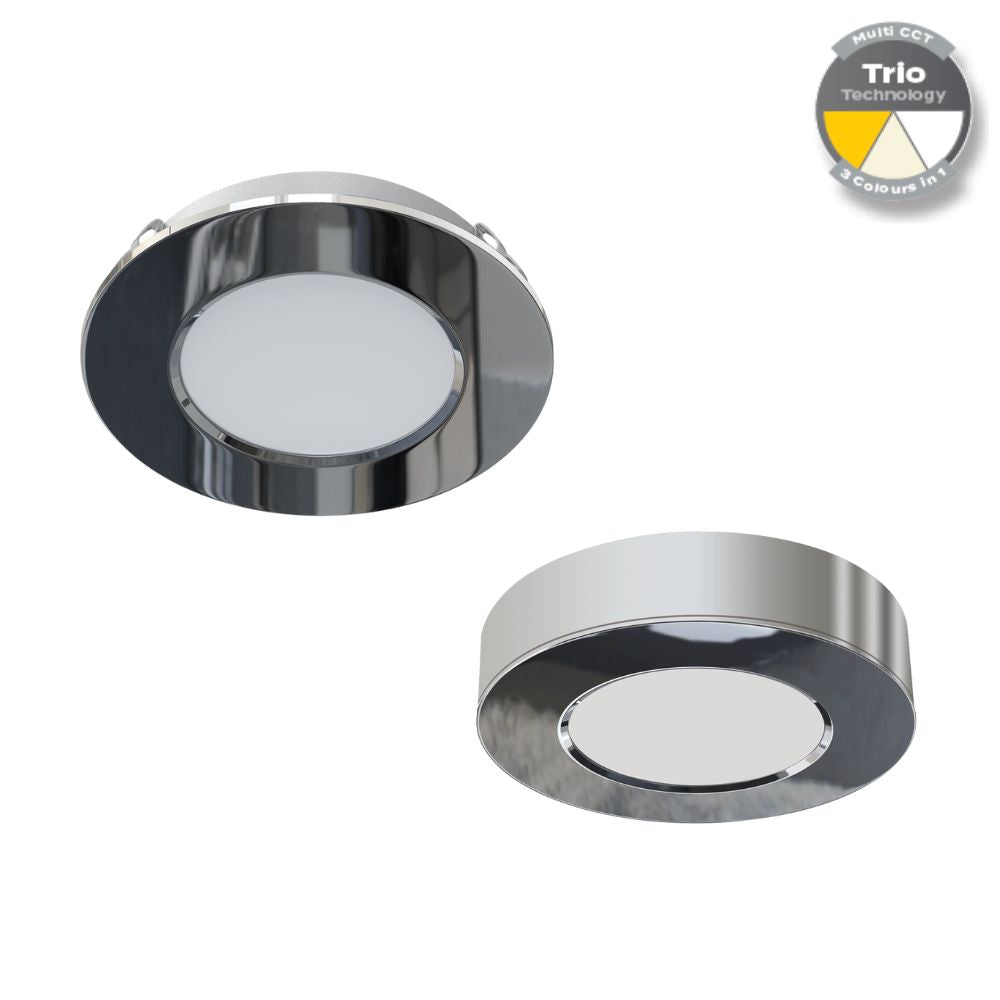

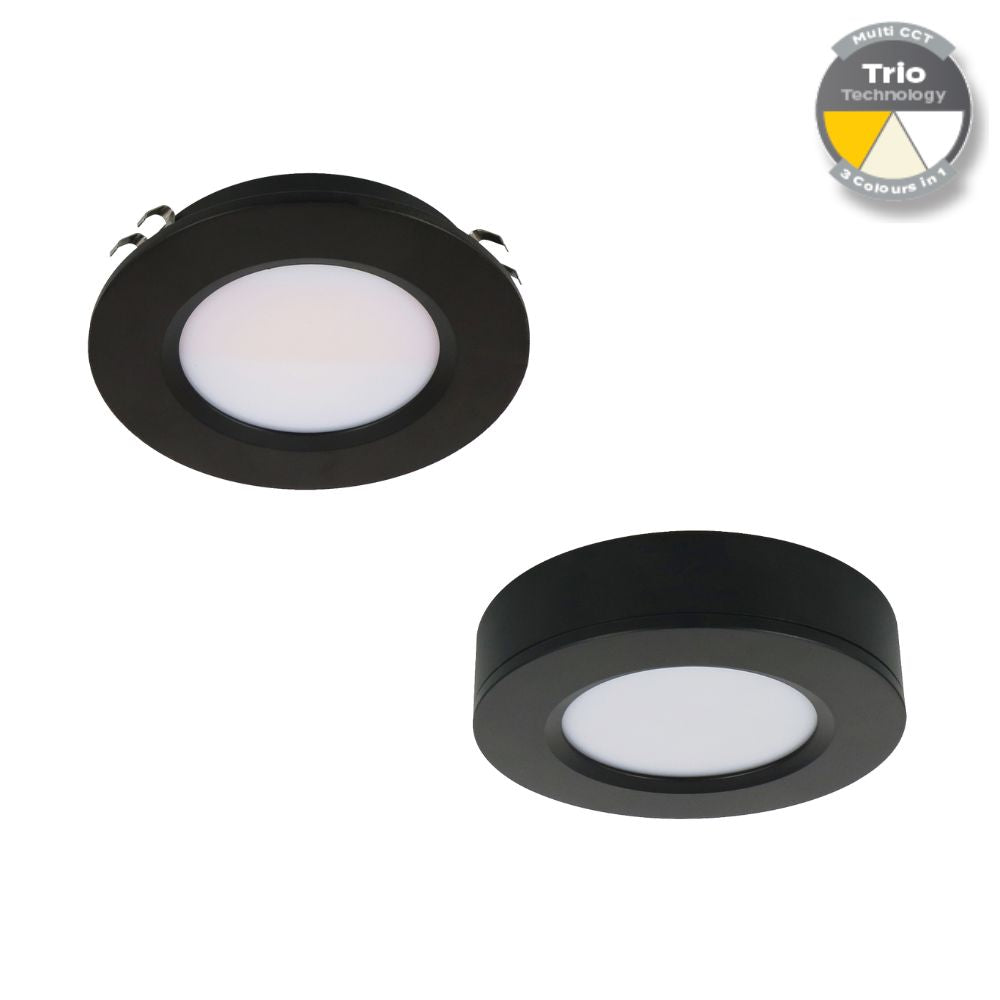

Introducing the ASTRA LED cabinet lighting series. The ASTRA is an alternative to the traditional halogen light sources. The ASTRA features a high output LED package to offer superior performance and light over the working area whilst only consuming a total 3.6W of energy. The ASTRA offers two mounting options to cover a wide range of applications. These include recessed mounting or surface mounting. Smooth even lighting is provided from a single light point and frosted lens. Available in White, Black, Silver, Satin Brass and Polished Chrome colour options. Tricolour switchable: choose between Warm White 3000K, N…
Before you buy
A compatible constant-voltage LED driver is required separately. Match the driver voltage and capacity to the selected product and total connected load. Licensed electrical installation is required.
Key highlights
Voltage
12V
Power
3.6W
Requires
12V DC LED Constant Voltage Driver - Wire in parallel
Cutout
Ø65mm
Input Voltage
12V DC (12V DC Constant Voltage Driver required)
Power (W)
3.6W LED
Useful features
Tri-Colour Switchable - Available in 3000K Warm White, 4000K Neutral White or 5000K White
Technical specifications
- Voltage
- 12V
- Power
- 3.6W
- Requires
- 12V DC LED Constant Voltage Driver - Wire in parallel
- Cutout
- Ø65mm
- Input Voltage
- 12V DC (12V DC Constant Voltage Driver required)
- Power (W)
- 3.6W LED
- LED Type
- SMD
- IP Rating
- IP20
- Lumen Output
- 3000K - 200lm, 4000K - 230lm, 5000K - 205lm
- Beam Angle
- 110°
- Dimmable
- Yes (With 12V DC Constant Voltage Dimmable Driver)
- Material
- Metal and Glass
- Diameter
- Ø65mm
- Height
- 18.5mm (With Surface Mounted Ring)
- Cut-out size
- D Ø65mm x H 13.5mm
Options & order codes
- White
- DL-21516
- Black
- DL-21517
- Silver
- DL-21518
- Satin Brass
- DL-21519
- Chrome
- DL-21520
What's included & required separately
Included: the selected Domus product or component matching the chosen Shopify variant.
Warranty
3 Year Replacement Warranty.
